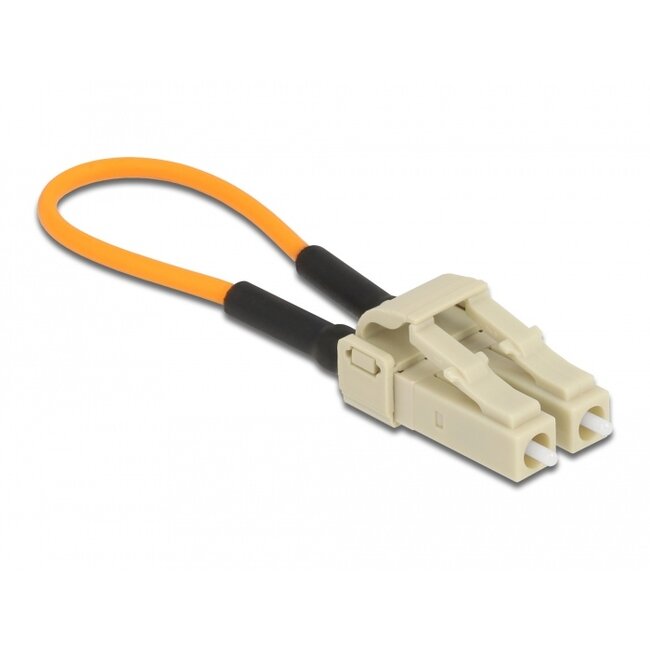

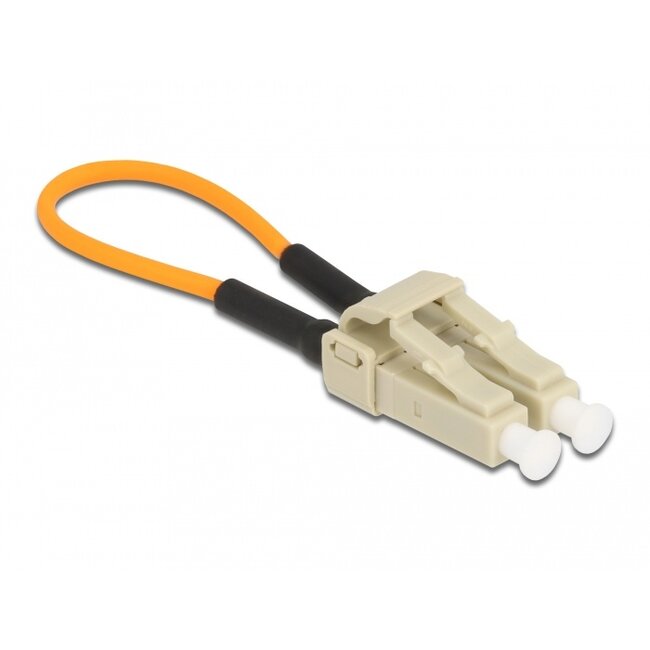

This loopback adapter by Delock can be used for testing purposes and for testing fiber optic connections. With the loopback, the transmission capability of the optical fibers can be measured.
Specification• Connector:
1 x LC Duplex male
• Multi-mode OM1 cable
• Fibre: 62.5/125 µm
• Insertion loss < 0.5 dB
• Zirconia ferrule with dust protection cap
• Cable diameter: ca. 2 mm
• Operating temperature: -20 °C ~ 70 °C
• Colour: beige / orange
• Cable jacket material: PVC
• Dimensions (LxWxH): ca. 60 x 20 x 11 mm
• Optical fiber adapter loopback
