This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. It allows the use of PCIe M.2 SSD. The converter can be installed into the system through the OCuLink SFF-8612 interface.

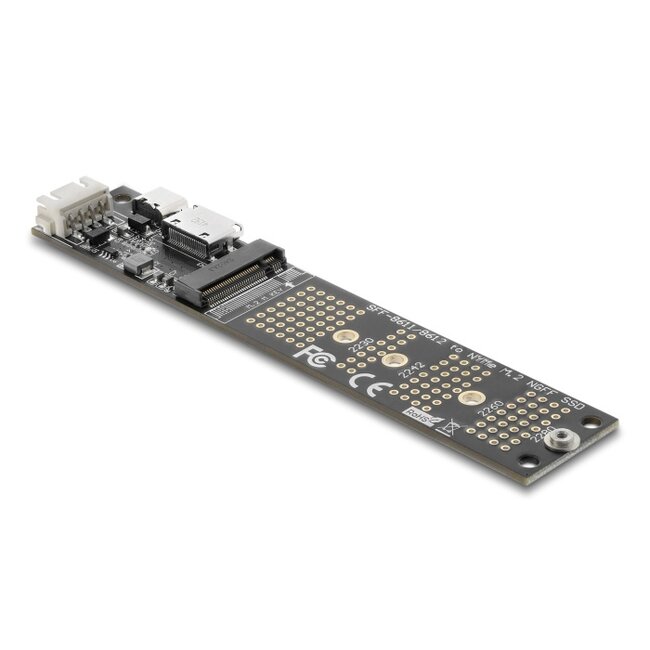

OCuLink SFF-8612 to M.2 key M converter
• Connectors:
1 x OCuLink SFF-8612 female
1 x M.2 key M slot
1 x USB Type-Câ„¢ female (power supply)
1 x 4 pin power connector
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Power supply via USB-C™ interface or via 4 pin power connector
• 1 x LED indicator
• Supports NVM Express (NVMe)
• Supports PCI Express 4.0 protocol
• Dimensions (LxWxH): ca. 126 x 24 x 8 mm
• Converter
• Power cable
• M.2 mounting material
• Screwdriver
• User manual
