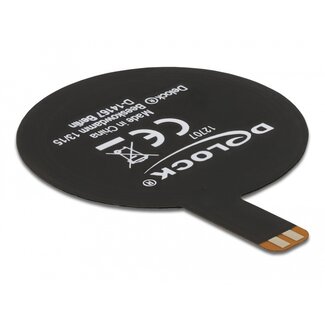

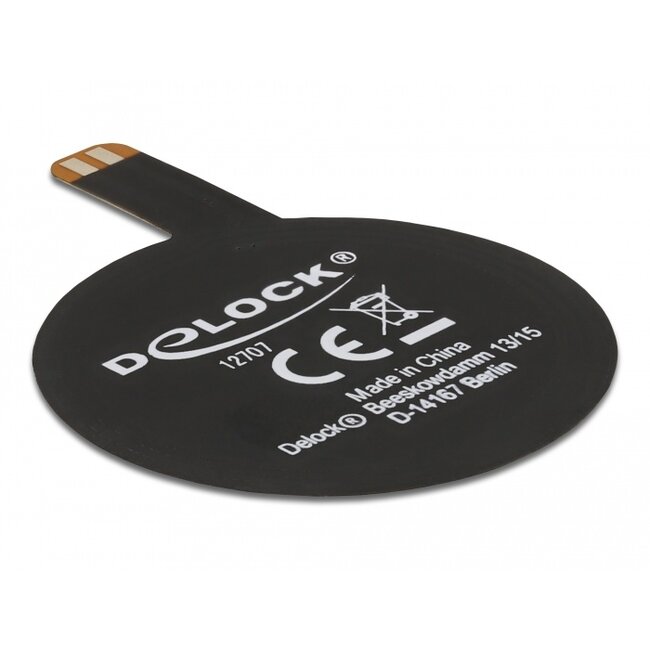

This antenna by Delock allows the usage of the NFC 13.56 MHz band internal.
Specification• Connector: SMT
• Frequency range: 13.56 MHz
• Impedance: 50 Ohm
• Rs (Ω): 1.0305
• La (uH): 1.5492
• Rp (kΩ): 8.9653
• Fra (MHz): 89.9
• Mounting type: self-adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Dimensions (LxWxH): ca. 54.47 x 40.00 x 0.27 mm
• Device with SMT solder pads
Package content
• Antenna
