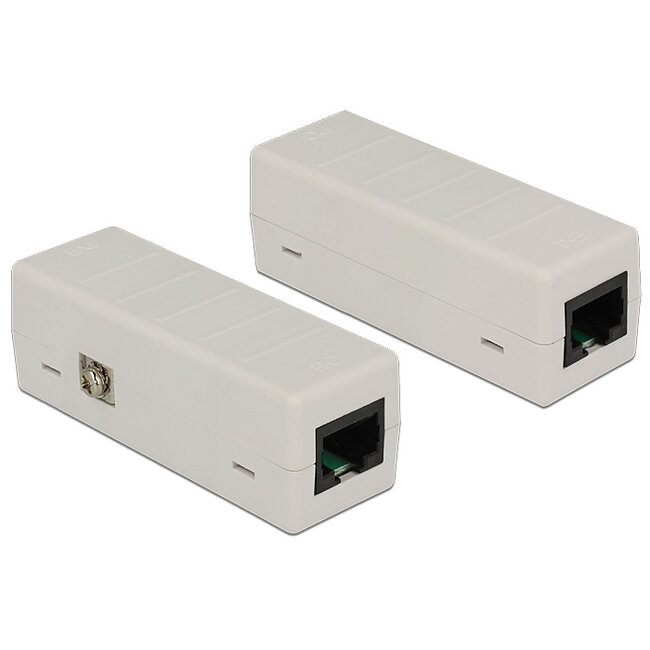

The RJ45 insulator by Delock protects a device from power surges on an attached network connection. The compact device supports Ethernet with 10/100/1000 Mb/s.
Specification• Connector:
1 x RJ45 jack (device)
1 x RJ45 jack (external)
1 x screw terminal for equipotential bonding
• Data transfer rate up to 10/100/1000 Mb/s
• Inductive galvanic isolation
• Common mode lightning surge test: 6 kV (10 / 700 us)
• Arrest capacity: 1000 A (8 / 20 us)
• Ignition voltage: 400 V (at 100 V / us), 950 V (at 1 kV / us)
• Operating temperature: 0 °C ~ 50 °C
• Housing material: plastic
• Dimensions (LxWxH): ca. 70 x 25 x 25 mm
• Device with a free RJ45 port
• Network cable (max. 50 cm)
Package content
• Network Surge Protector
• User manual
