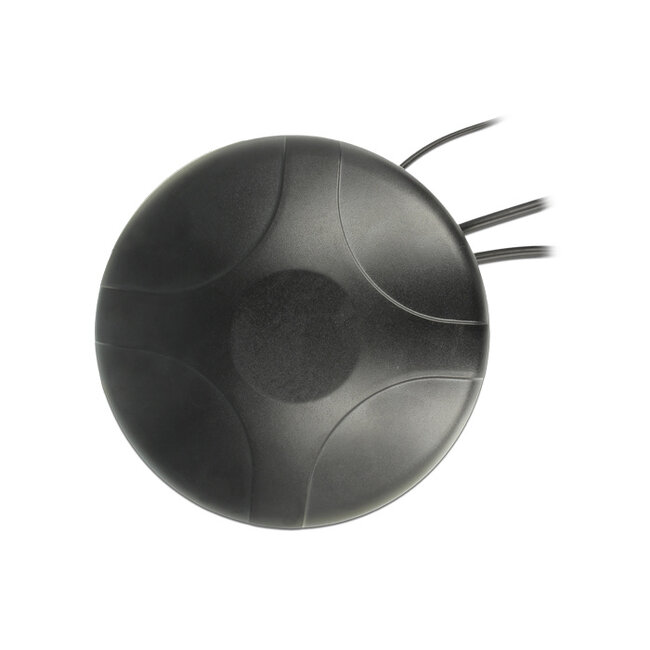

This Delock multi-band antenna has three physically separate transmitting and receiving units. Two PIFA antennas, respectively, for LTE and GSM/UMTS are responsible for sending and receiving in these areas. The GPS patch antenna receives the signals of the Global Navigation Satellite System GPS.
Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof, shock resistant and can be used in the extended temperature range.

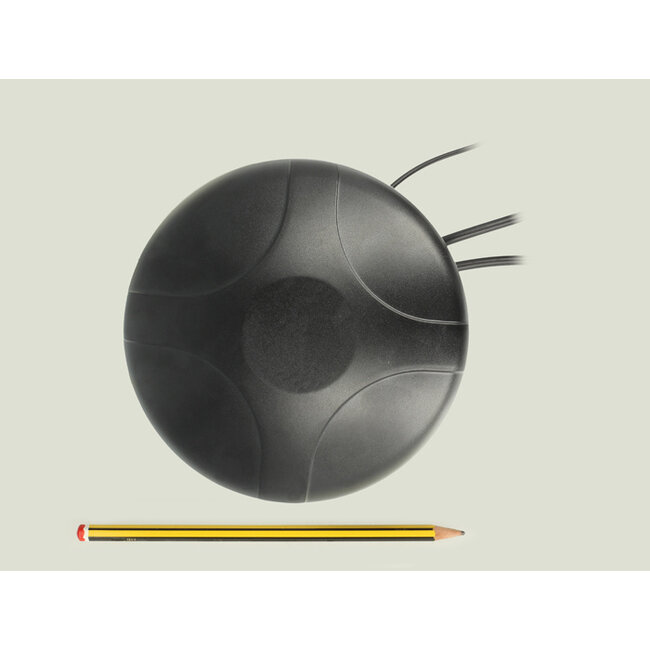

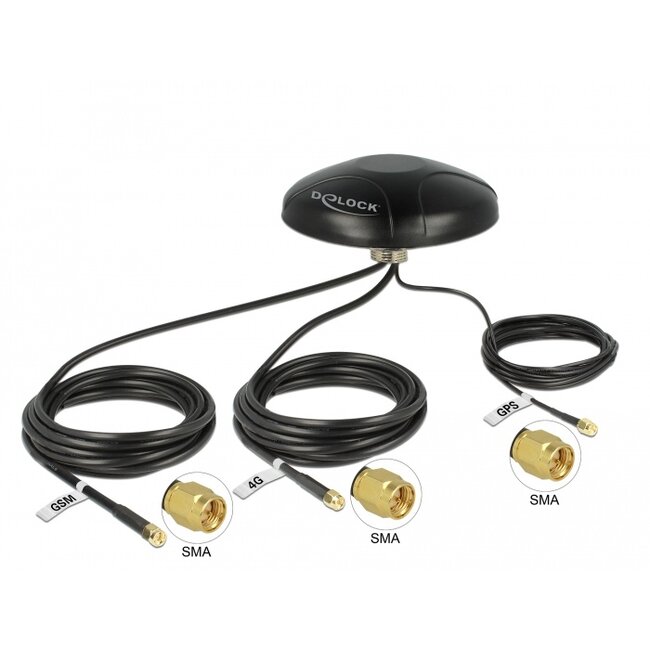

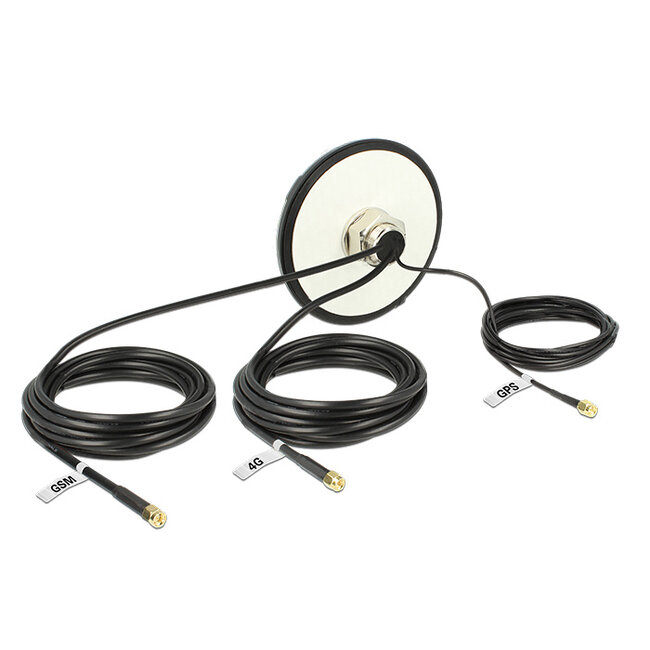

• Connectors: 3 x SMA male
• LTE:
Frequency range:
0,698 - 0,960 GHz
1,710 - 2,700 GHz
GSM / UMTS / ZigBee / Z-Wave / WLAN 2,4 GHz / Bluetooth
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR: 2,5
Polarisation: linear
Cable: coaxial
Cable type: RG-58/U
Cable diameter: ca. 4,95 mm
Cable attenuation: 0,6 dBi @ 1 GHz per meter
• GSM UMTS:
Frequency range:
0,824 - 0,960 GHz
1,710 - 2,170 GHz
GSM / UMTS / Z-Wave
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR: 2,5
Polarisation: linear
Cable: coaxial
Cable type: RG-58/U
Cable diameter: ca. 4,95 mm
Cable attenuation: 0,6 dBi @ 1 GHz per meter
• GPS:
Frequency range:
GPS: L1, 1,57542 GHz
Antenna gain: 28 dBi
Impedance: 50 Ohm
VSWR: 2,5
Polarisation: RHCP
Cable: coaxial
Cable type: RG-174
Cable diameter: ca. 2,7 mm
Cable attenuation: 1,5 dB @ 1,5 GHz per meter
Operating voltage: 2,2 - 5,0 V
Current consumption: 5 - 15 mA
• LNA GPS:
Frequency range:
GPS: L1, 1,57542 GHz
Antenna gain: 28 dBi
VSWR: 2,0
Impedance: 50 Ohm
Cable: coaxial
Cable type: RG-174
Cable diameter: ca. 2,7 mm
Cable attenuation: 1,5 dB @ 1,5 GHz per meter
Operatin voltage: 2,2 - 5,0 V
Current consumption: 5 - 15 mA
• Screw-on mounting
• Operating temperature: -40°C ~ 85°C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable colour: black
• Cable length incl. connectors: ca. 3 m
• Dimensions (DxH): ca. 143,6 x 65 mm
• Mounting hole diameter: 30 mm
• Device with free SMA connectors
Package content
• Multiband antenna
• Nut
