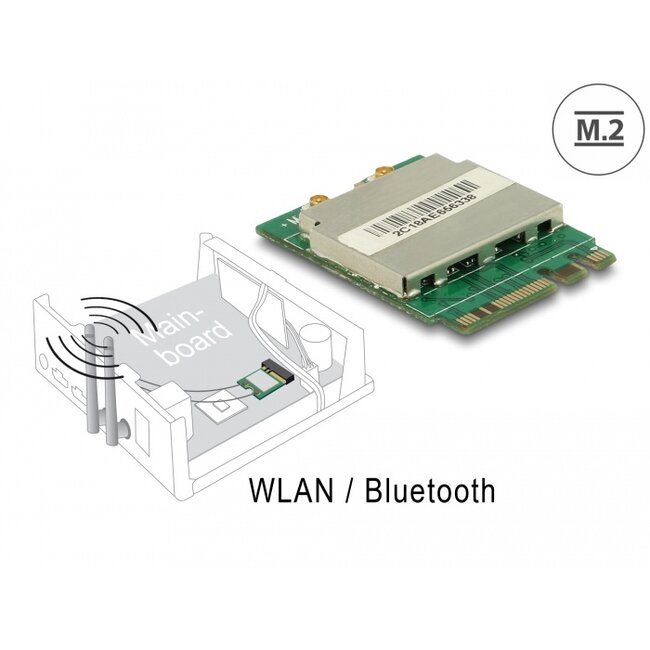

This M.2 module by Delock can be inserted into an M.2 slot with key A or key E. It provides one WLAN interface which exchanges signals via PCIe with the system and one Bluetooth interface which exchanges signals via USB with the system.
Specification• Connectors:
1 x 59 pin M.2 key A+E male
2 x I-PEX Inc., MHF® I plug
• Chipset: Realtek RTL8821AE
• Interface: PCIe 1.1 + USB 1.1
• Form factor: M.2 2230
• Suitable for M.2 slot with key A or key E based on PCIe and USB
• WLAN
Frequency range: 2.4 GHz and 5 GHz
Compatible with IEEE 802.11ac/a/n/b/g
Data transfer rate: 11ac up to 433.3 Mb/s, 11n up to 150 Mb/s, 11a/g up to 54 Mb/s
Supports IEEE 802.11e Quality of Service (QoS) for Multimedia applications (WMM)
Supports IEEE 802.11i WPA and WPA2
Supports WiFi Direct, WAPI
• Bluetooth
Frequency range: 2400 ~ 2483.5 MHz
Supports BT 4.0 dual mode with simultaneous LE and BR/EDR use
Supports AFH
Bluetooth downwards compatible to 3.0 and 2.1
• Current consumption: 3.3 V / 500 mA
• Operating temperature: 0 °C ~ 55 °C
• Storage temperature: -5 °C ~ 65 °C
• Operating humidity: 10 ~ 90 %
• Storage humidity: 5 ~ 90 %
• Dimensions (LxWxH): ca. 30.0 x 22.0 x 2.5 mm
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• A free M.2 key A or key E slot
Package content
• M.2 module
• User manual
