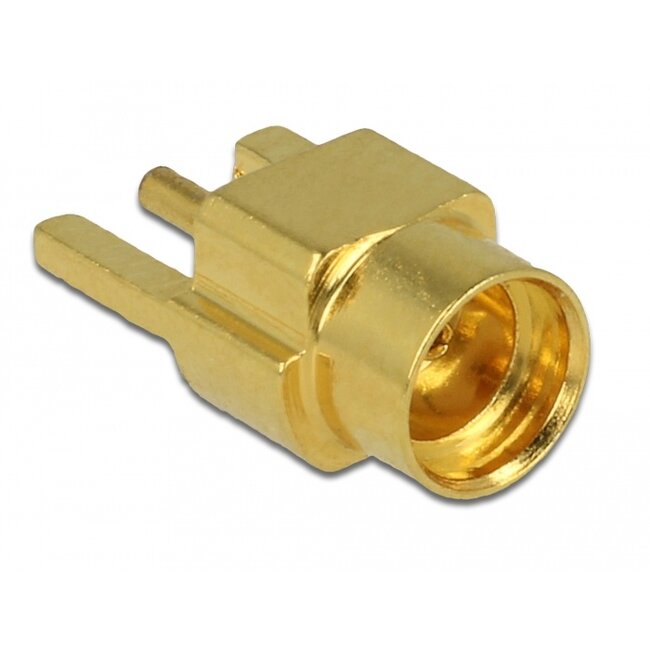

This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification• Connector: 1 x MMCX jack
• Pin: brass gold plated
• Insulator: PTFE
• Housing: brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.2
• Operating temperature: -55 °C ~ 165 °C
• Soldering: 3 solder joint
• Dimensions (LxHxD): 7.5 x 4.5 x 3.4 mm
• Suitable board for mounting the MMCX connector
Package content
• MMCX jack
