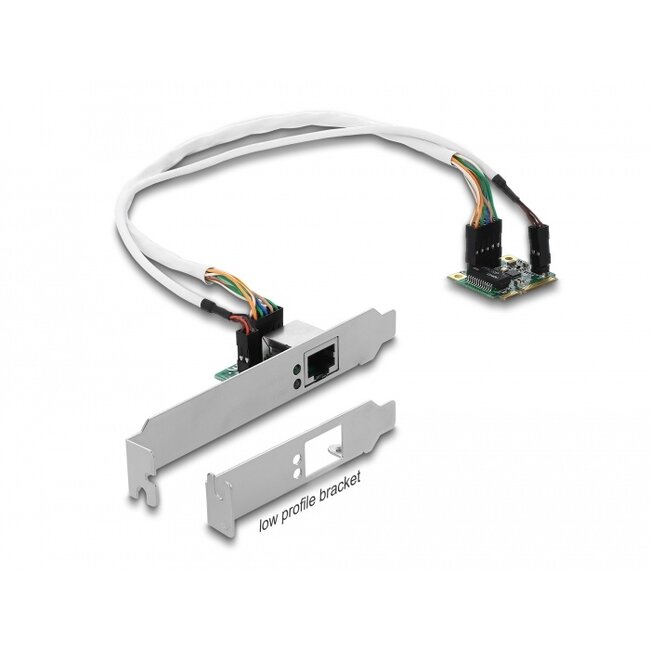

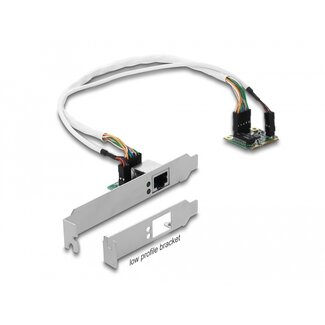

This Mini PCIe module by Delock expands a system by one Gigabit LAN interface, which can be lead out via the slot bracket.
Specification• Connectors:
1 x Mini PCIe male >
1 x Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8111H
• Form factor: Mini PCIe half size
• Interface: PCI Express revision 1.1
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
PCI Express x1 up to 2.5 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Cable length with connectors: ca. 30 cm
• Linux Kernel 3.2 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
• PC with one free slot
Package content
• Mini PCIe module
• 2 connecting cable
• Slot bracket
• Low profile bracket
• Driver CD
• User manual
