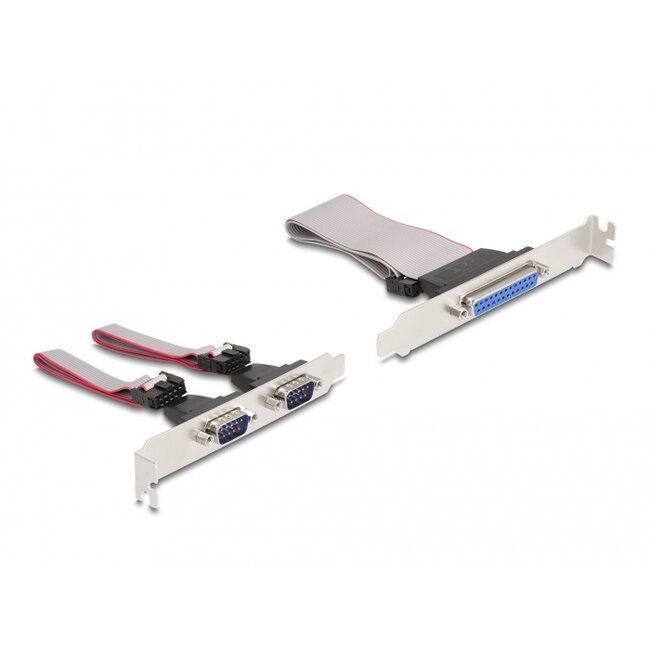

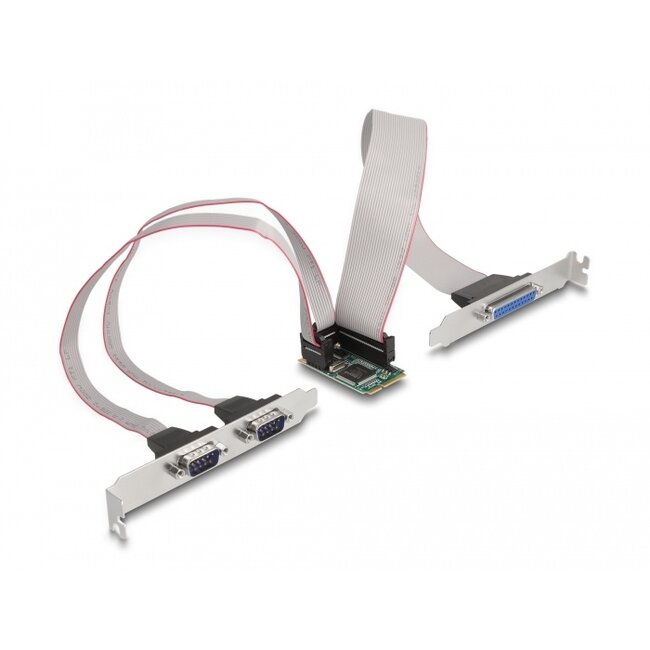

The Mini PCIe module by Delock expands your system by two serial and one parallel interface, which you can lead out through the slot bracket. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.
Specification• Connectors:
PCB:
2 x 9 pin COM port pin header male
1 x 25 pin parallel port pin header male
cable:
2 x serial RS-232 DB9 male with nuts
1 x Parallel DB25 female with nuts
• Chipset: Moschip MCS9901
• Form factor: Mini PCIe full size
• Interface: PCI Express revision 1.1
• Data transfer rate up to 230.4 Kbps
• Compatible with 16C450 / 16C550 UART
• FIFO: 256 byte
• Mode:
serial: RS-232
parallel: SPP/PS2/EPP/ECP - IEEE1284
• Cable length with connectors:
serial ca. 30 cm
Parallel ca. 28 cm
• Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
Package content
• Mini PCIe module
• 1 x slot bracket with two serial ports
• 1 x slot bracket parallel
• Driver CD
• User manual
