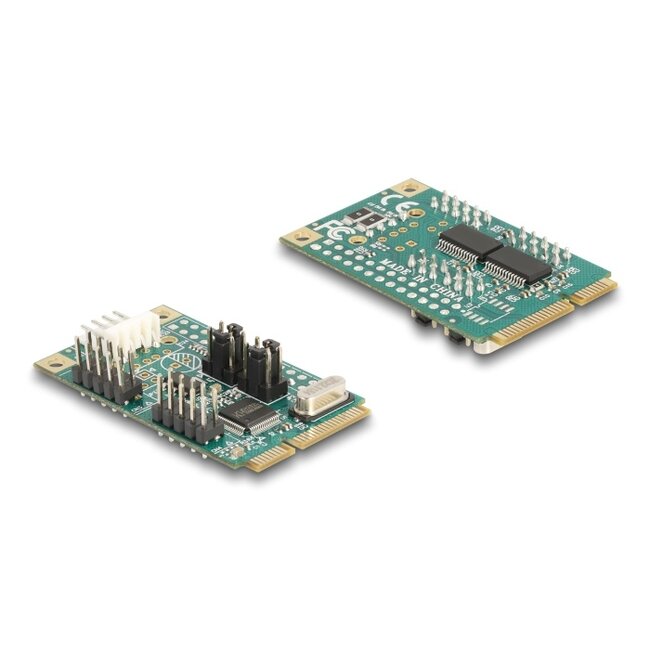

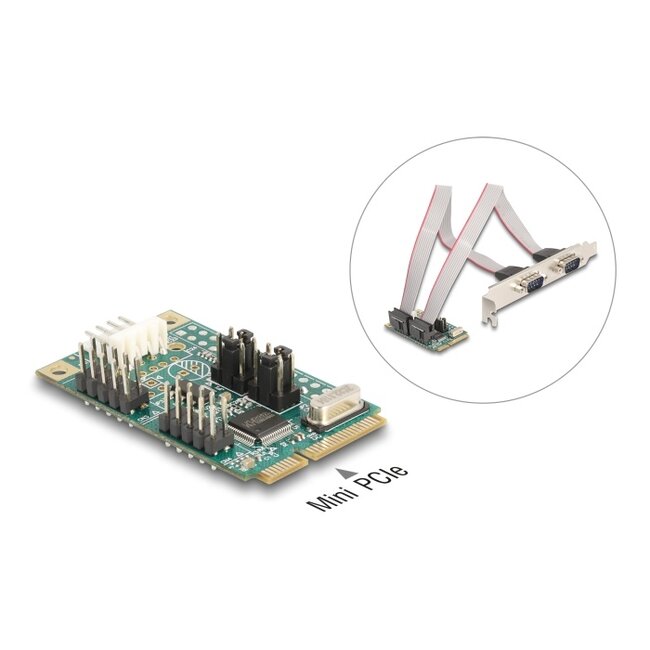

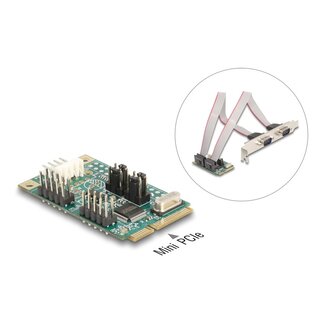

This Mini PCIe card by Delock expands your system by two additional RS-232 ports. This allows various serial devices like printer, POS systems and modems to be connected to the computer.
Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V.
• Connectors:
external:
2 x serial D-Sub 9 pin male
internal:
1 x Mini PCI Express, Rev. 1.2
2 x 10 pin pin header
1 x Floppy 4 pin male
• Chipset: WCH382L
• Form factor: Mini PCIe full size
• Data transfer rate up to 460.8 Kbps
• FIFO: 2 x 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Jumper setting RI or 5 V / 12 V on pin 9
• Electrical power per port: max. 20 watt (5 V / 4 A)
• Electrical power per port: max. 48 watt (12 V / 4 A)
• Cable length incl. connectors: ca. 25 cm
• Dimensions (LxWxH): ca. 51 x 30 x 10 mm
• Windows 10/10-64/11
• Windows Server 2022
• Motherboard with a free Mini PCIe slot with a PCIe interface

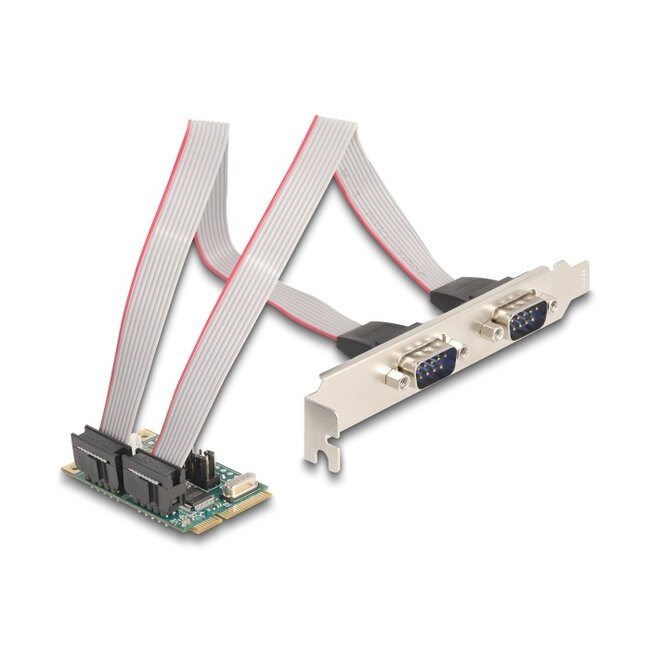

Package content
• Mini PCIe module
• 2 serial connection cable
• 1 x standard bracket
• 2 x low profile bracket
• User manual
