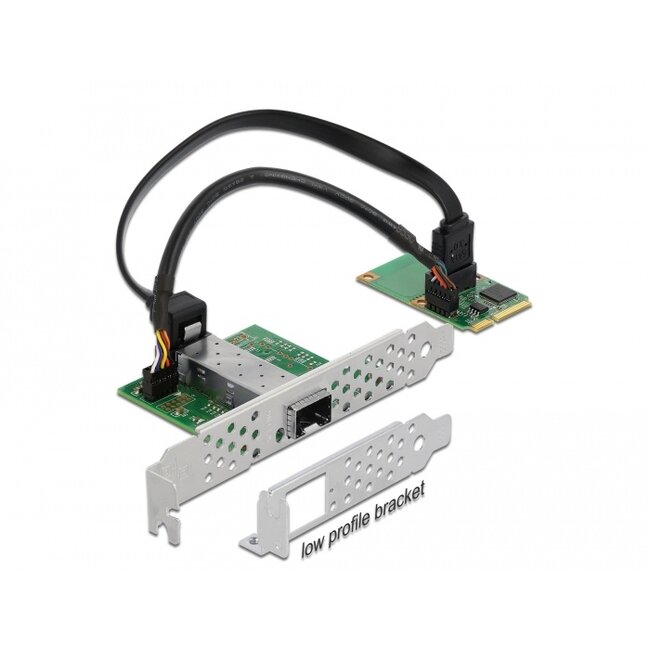

This Mini PCIe module by Delock expands a system by one Gigabit LAN SFP interface, which can be lead out via the slot bracket.
With the perforation, the length can be shortened from full size to half size.
• Connectors:
internal:
1 x Mini PCIe male
external:
1 x SFP slot for 1 Gbps SFP module
• Chipset: Intel i210
• Form factor: Mini PCIe full size / half size
• Interface: PCI Express revision 2.1
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 9k Jumbo Frames
• Supports PXE
• Operating temperature: 0 °C ~ 55 °C
• Storage temperature: -40 °C ~ 70 °C
• Cable length with connectors: ca. 18 cm
• Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Motherboard with a free Mini PCIe slot with a PCIe interface
• PC with one free slot
• SFP module
Package content
• Mini PCIe module
• 2 connecting cable
• Slot bracket
• Low profile bracket
• Driver CD
• User manual
