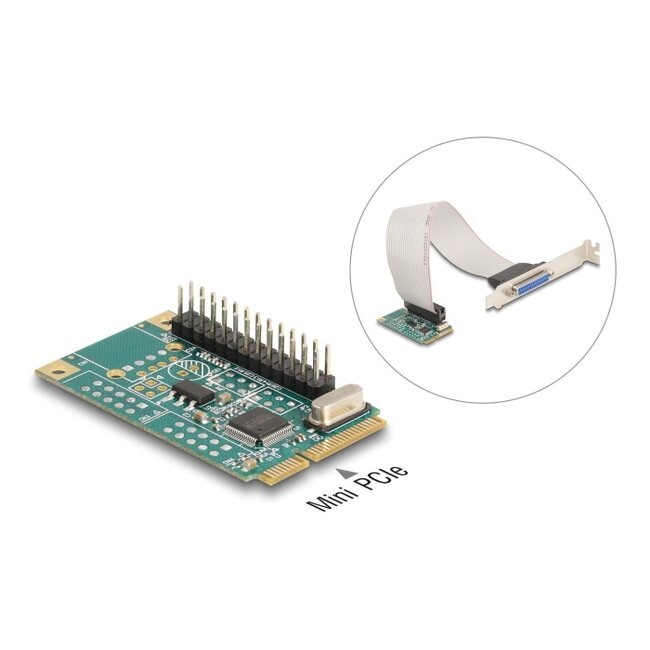

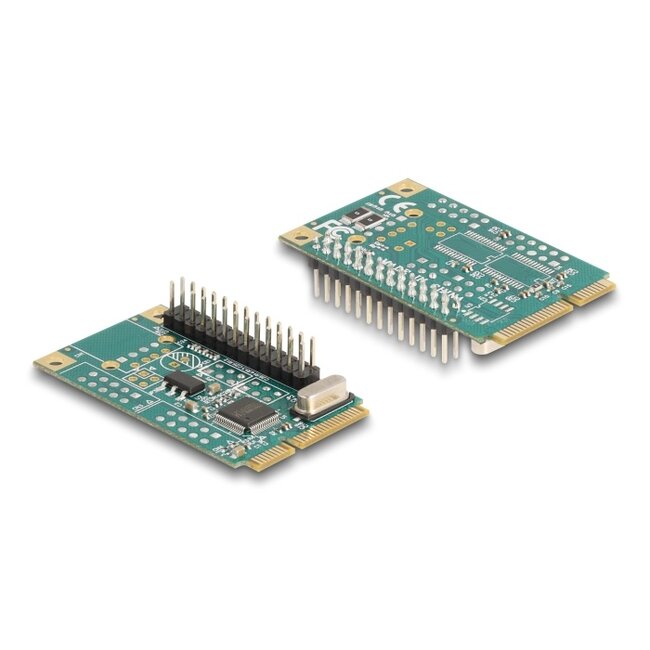

This Mini PCIe card by Delock expands a PC by one external parallel port. Different devices such as scanner, printer etc. can be connected to this card.
Specification• Connectors:
external:
1 x parallel D-Sub 25 pin female
internal:
1 x Mini PCI Express, Rev. 1.2
1 x 26 pin pin header
• Chipset: WCH382L
• Form factor: Mini PCIe full size
• Data transfer rate up to 1 Mbps
• SPP, PS2, EPP, ECP compatible to IEEE 1284
• Cable length incl. connectors: ca. 25 cm
• Dimensions (LxWxH): ca. 51 x 30 x 10 mm
• Linux Kernel 6.5 or above
• Windows 10/10-64/11
• Windows Server 2022
• Motherboard with a free Mini PCIe slot with a PCIe interface
Package content
• Mini PCIe module

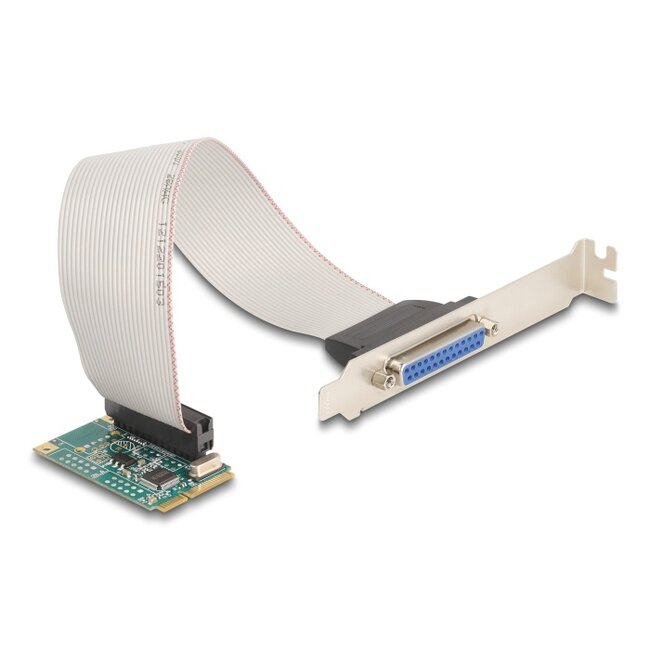

• 1 parallel connecting cable

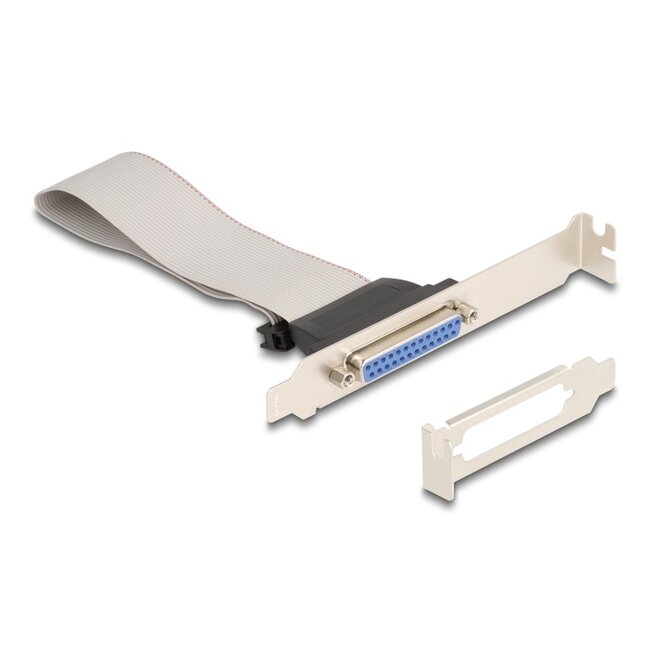

• 1 x standard bracket
• 1 x low profile bracket
• User manual
