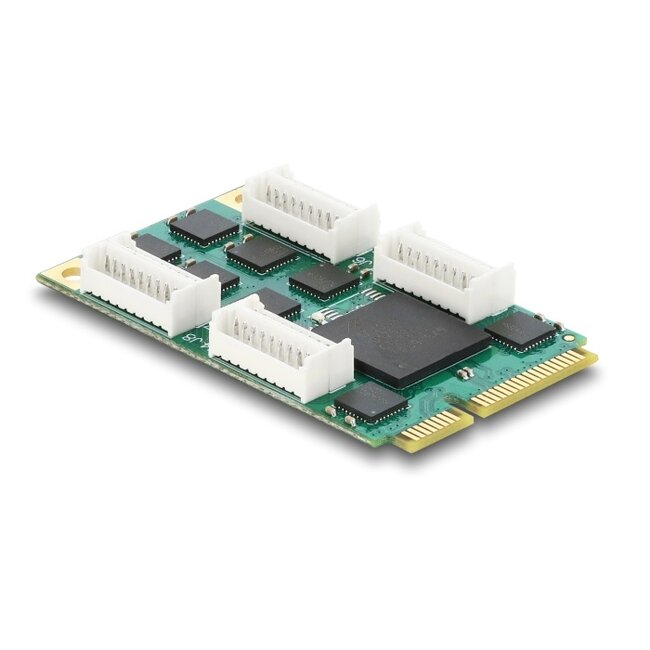

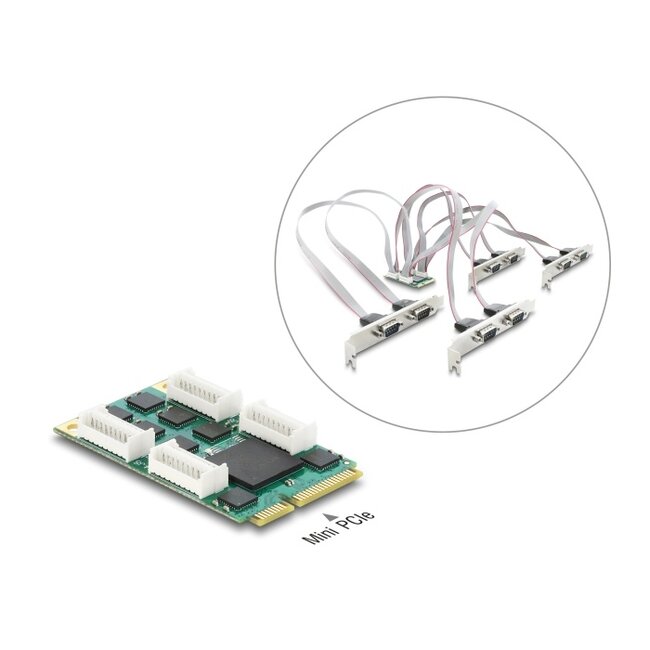

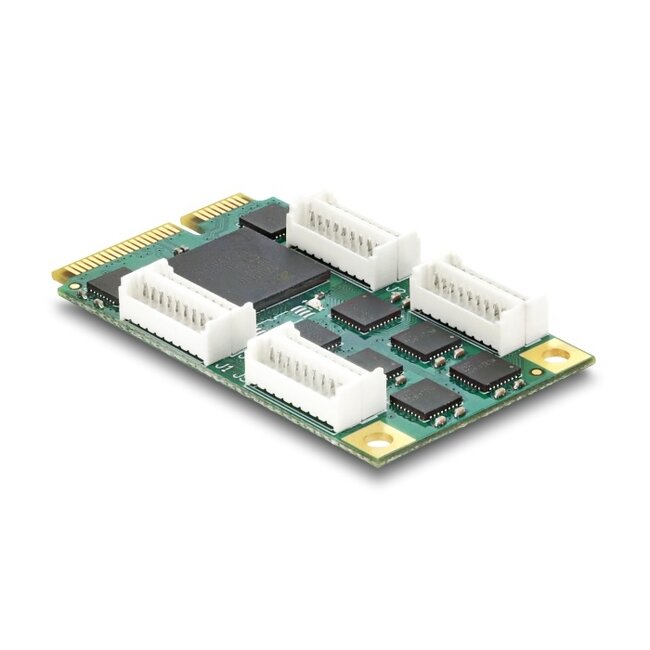

This Mini PCIe card by Delock expands your system by eight additional RS-232 ports. This allows various serial devices like printer, POS systems and modems to be connected to the computer.
Specification• Connectors:
external:
8 x serial D-Sub 9 pin male
internal:
1 x Mini PCI Express, PCIe 2.0 Gen 1
8 x 9 pin pin header male
• Chipset: MaxLinear XR17V358 + WS3243FCQ
• Form factor: Mini PCIe full size
• Data transfer rate up to 921.6 Kbps
• FIFO:
8 x 256 Byte - RX
8 x 256 Byte - TX
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS or DTR / DSR, software XON / XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Cable length incl. connectors: ca. 30 cm
• Dimensions (LxWxH): ca. 51 x 30 x 7 mm
• Linux Kernel 2.6.32 or above
• Windows 10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface

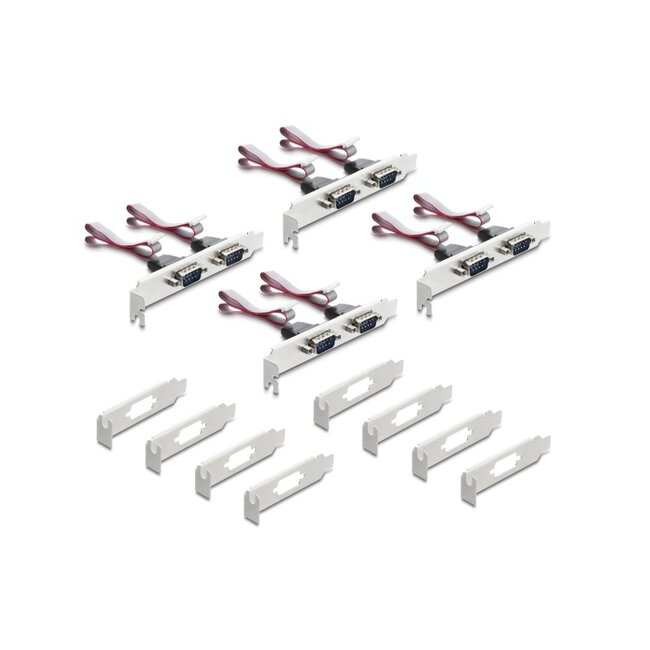

Package content
• Mini PCIe module

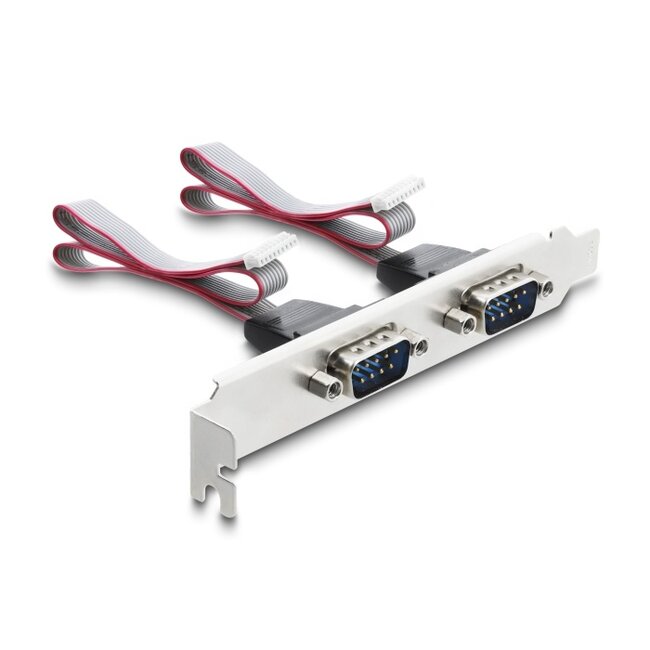

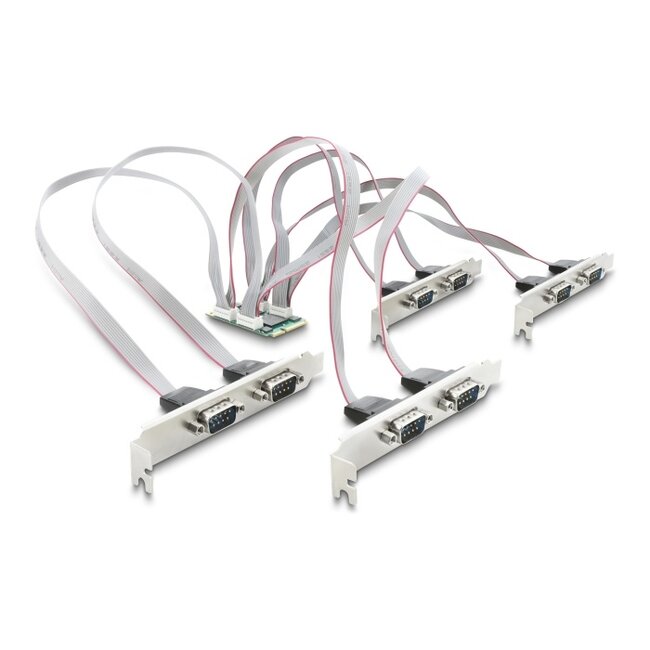

• 8 x serial connecting cable (ca. 30 cm)
• 4 x standard bracket
• 8 x low profile bracket
• User manual
