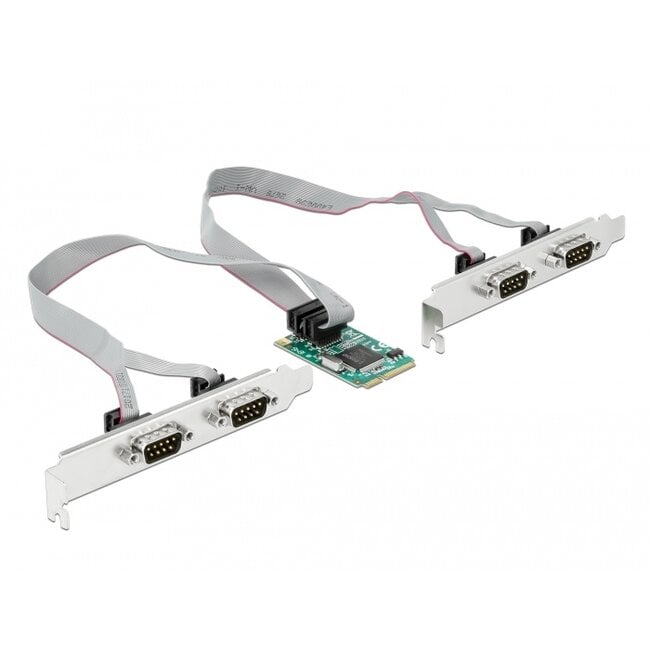

This Mini PCIe adapter by Delock expands your system by four additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices like printer, scanner, modem etc. to this adapter.
Specification• Connectors:
on the module:
2 x 20 pin pin header male
on the slot bracket: (2 slot brackets)
2 x serial RS-232 DB9 male with nuts
• Chipset: Moschip MCS9904
• Form factor: Mini PCIe full size
• Interface: PCI Express revision 1.1
• Data transfer rate up to 230.4 Kbps
• Compatible with 16C450 / 16C550 UART
• Cable length incl. connectors: ca. 30 cm
• Linux Kernel 3.7 or above
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
Package content
• Mini PCIe module
• 2 x serial connection cable
• 2 x slot bracket with 2 DB9 ports
• Driver CD
• User manual
