This adapter by Delock is suitable for connecting components of electronic technology and electronic in vehicles.
Space saving up to 80 %
Thanks to the small size of the housings at higher data rates, a space saving of 80 % can be achieved compared to the standard FAKRA connector. This allows several modules to be accommodated in a small space.
Note
B-Type: Compatible with TE

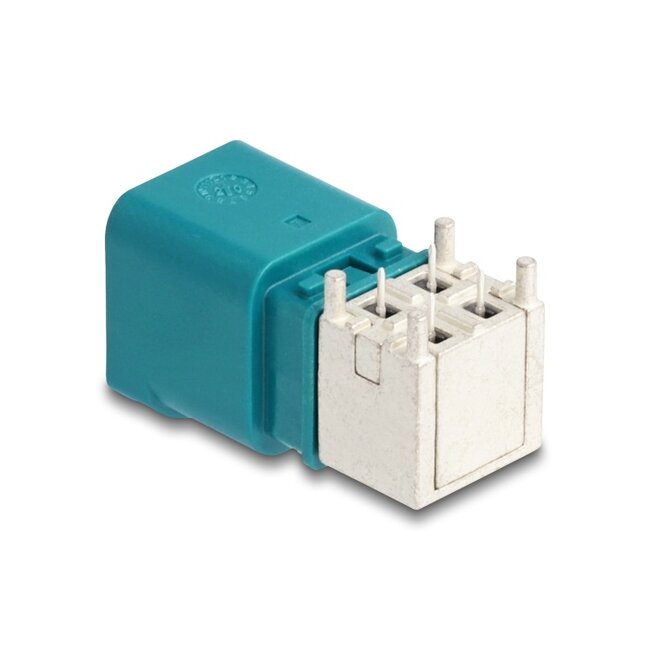

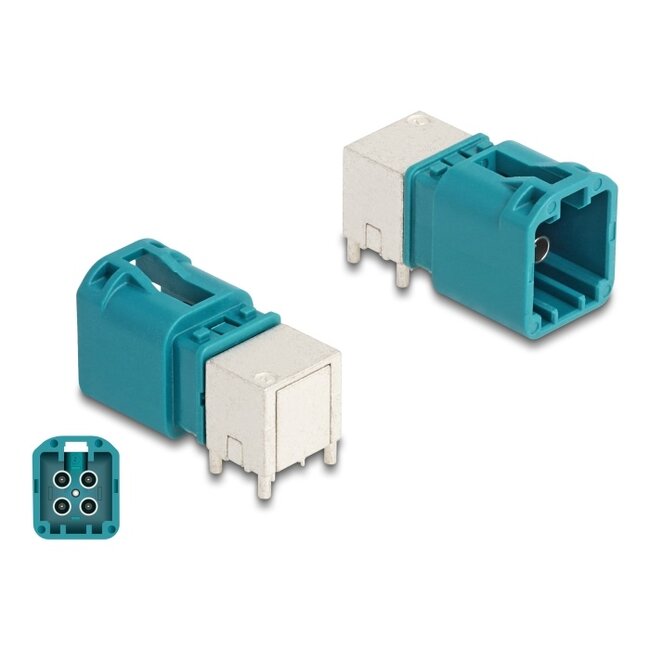

• Connector: 1 x Mini FAKRA Z plug 90° PCB
• Mini FAKRA Z Z: RAL 5021 water blue
• Pin: brass
• Insulator: LCP
• Plastic shell: PA46
• Soldering process: THT
• Data transfer rate up to 28 Gbps
• Frequency range: up to 20 GHz
• Impedance: 50 Ohm
• Dimensions (LxWxH): ca. 21 x 8 x 10 mm
• Mini FAKRA plug
