This patch panel by Delock is the ideal solution for small network installations, distributions in switch cabinets or for applications with limited installation space.
Versatile mounting on a table, wall or DIN rail

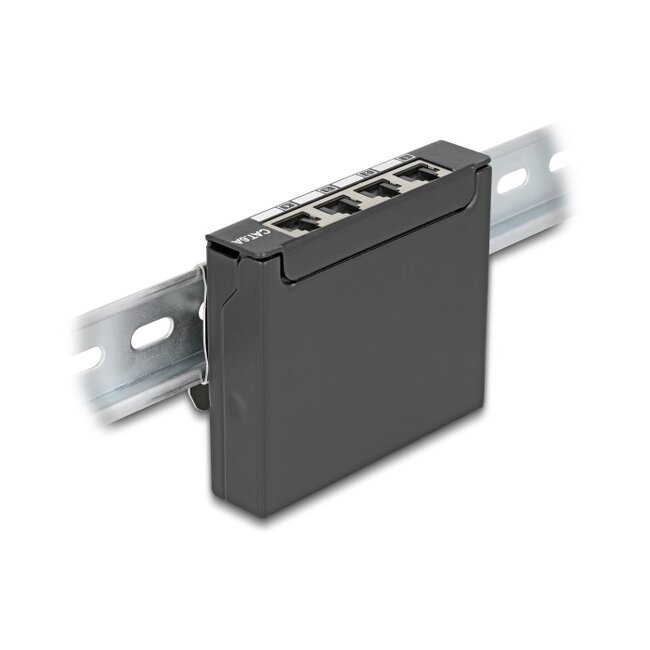

The distributor can be mounted either on a table, on the wall or on 35 mm wide DIN rails. The clips included in the scope of delivery enable simple DIN rail mounting, ideal for distribution cabinets or industrial environments. Alternatively, direct wall mounting is also possible, e.g. in small technical rooms, distribution boxes or anywhere where no rack is available.

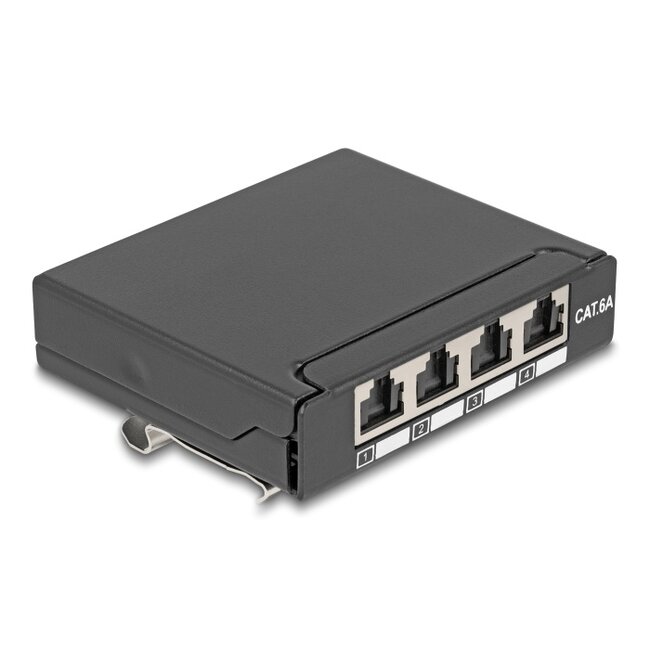

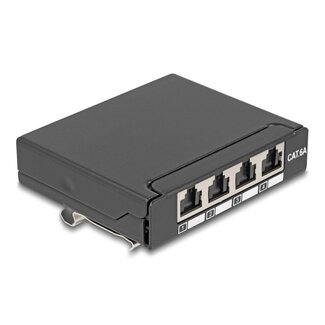

RJ45 jacks with dust protection flaps
The RJ45 jacks are equipped with practical dust protection flaps that protect the contacts from dirt and dust.

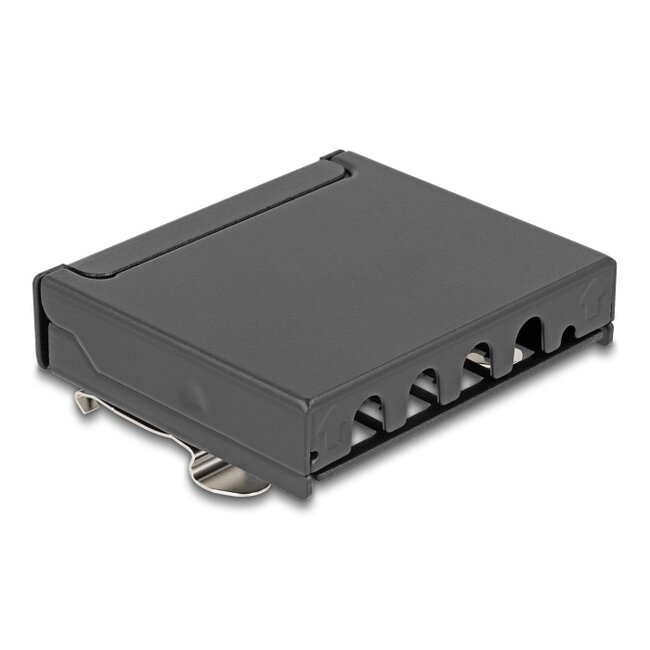

Metal housing
The robust black metal housing ensures durable and professional installation.
• Connectors:
4 x RJ45 jack

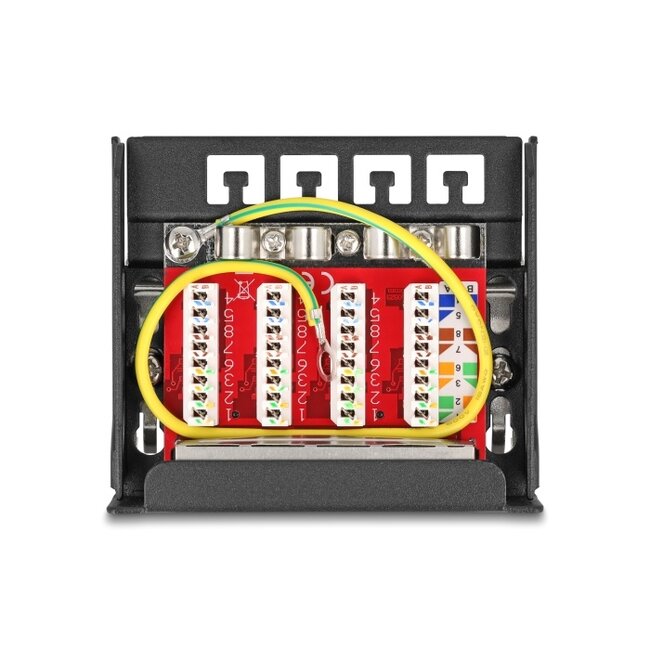

4 x LSA block
• Cat.6A specification
• Mounting options:
Desktop mounting
Wall mounting (with drill holes)

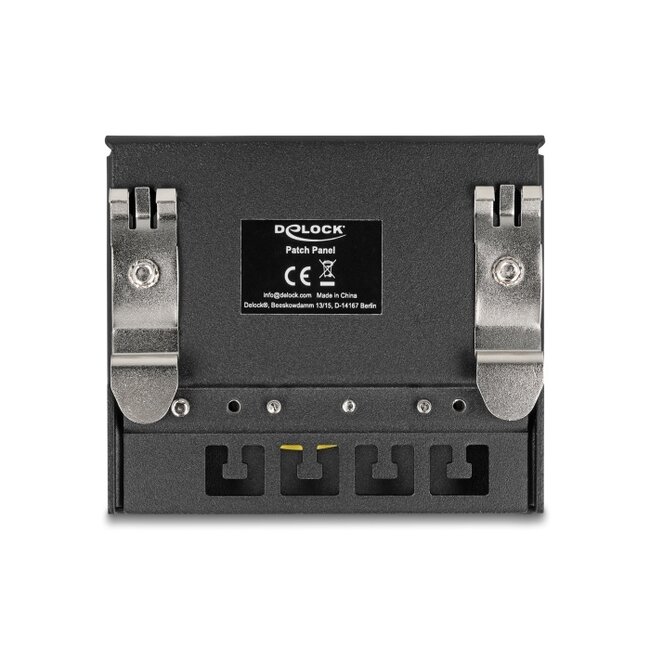

DIN rail mounting 35 mm (clips included)
• Shielded
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• Housing material: metal
• Colour: black
• Dimensions (LxWxH): ca. 93 x 80 x 22 mm

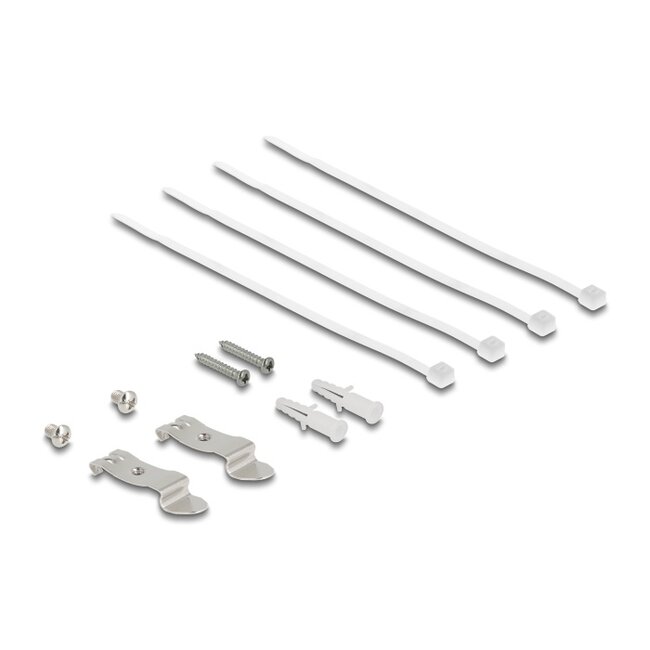

• Patch panel
• Ground wire
• 2 x DIN rail clip
• 2 x screw M5 x 6 mm
• 2 x screw 3.7 x 20.0 mm
• 2 x dowel 5.5 x 27.4 mm
• 4 x cable tie 2.5 x 100 mm
