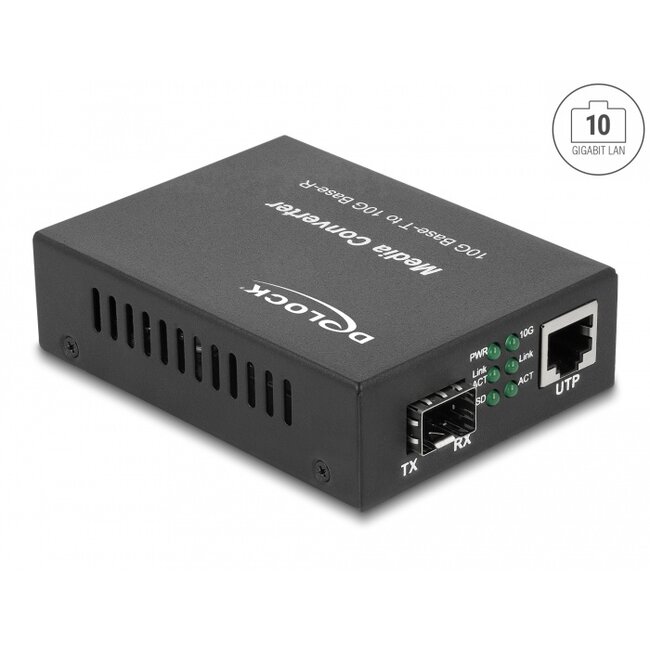

This 10 Gigabit Ethernet Media converter by Delock can be used to connect different media. In the SFP slot, various optional SFP+ modules up to 10 Gbps can be used.
NBASE-T for higher speed
The RJ45 port is equipped with NBASE-T for higher speeds. This allows for up to 10 Gbps data transfer rate with traditional networking cables. The best possible transfer rate is set automatically.
• Connectors:
1 x SFP slot for 10GBase-R SFP+ module
1 x 10 Gigabit LAN RJ45 jack
• Data transfer rate:
Gigabit Ethernet up to 1 Gbps
NBASE-T with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
• SFP module not included
• 6 LEDs for status monitoring
• Power consumption: max. 5 W
• Operating temperature: 0 °C ~ 55 °C
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 94 x 71 x 26 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.4 A
• Output: 12 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
• 10GBase-R SFP+ module
Package content
• Media converter
• Power supply
• User manual
