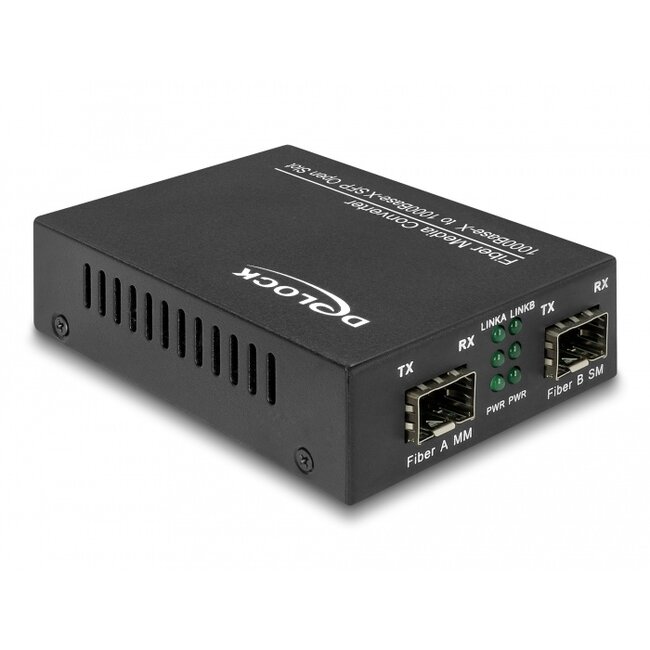

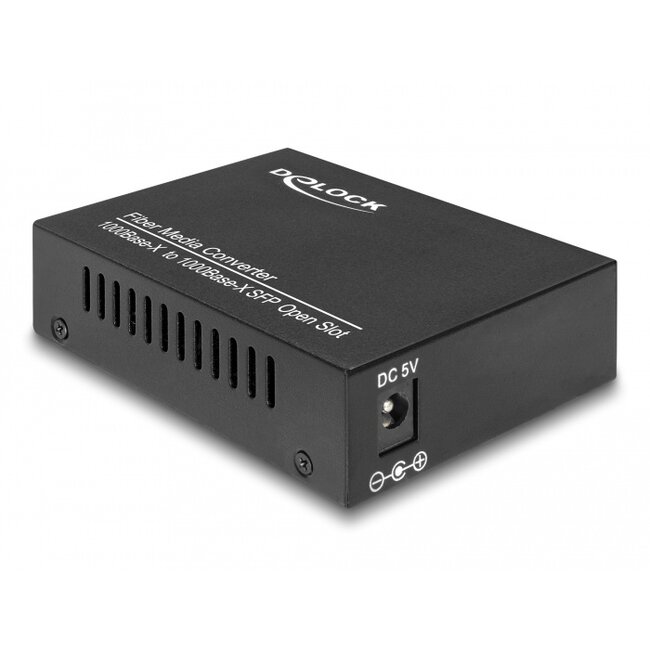

This Gigabit Ethernet Media Converter by Delock can be used to connect different optical media. For example, multimode fiber can be converted to singlemode fiber. In the SFP slots, various optional 1 Gb/s SFP modules by Delock can be used.
10/2018 New power supply
• Connector:
2 x SFP slot for 1000Base-X SFP module (SFP modules not included)
• Data transfer rate up to 1 Gb/s
• 6 LEDs for status monitoring
• Power consumption: 2.5 W
• Operating temperature: 0° ~ 55° C
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 95 x 70 x 26 mm

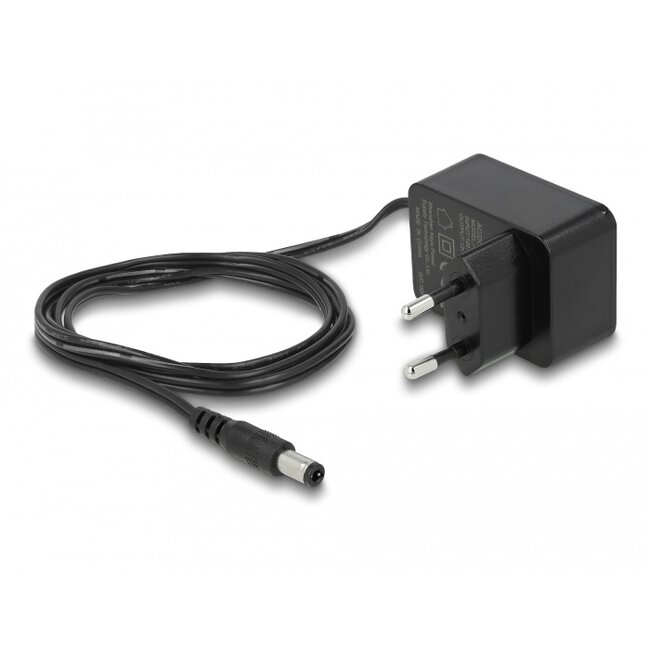

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 1.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
• 1000Base-X SFP module
Package content
• Media Converter
• Power supply
• User manual
