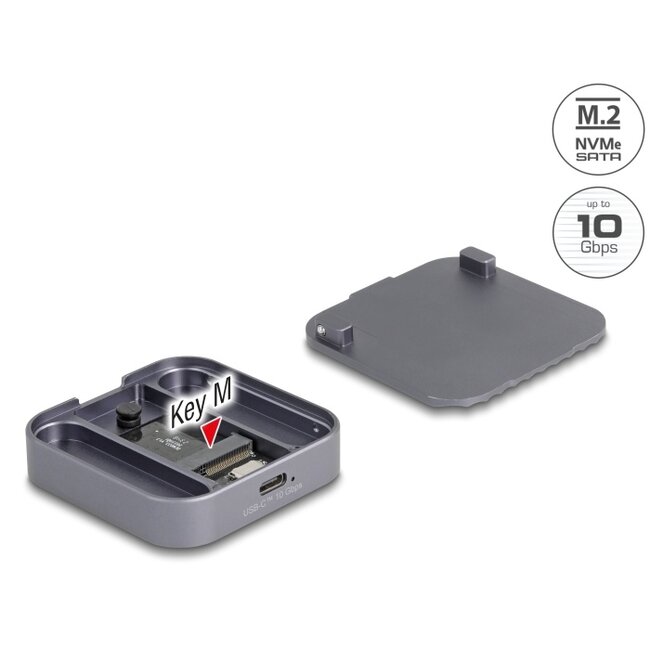

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2230 format, and due to its magnetic bottom e.g. can be attached to the back of an iPhone 15. In addition, the enclosure can also be connected to a PC or laptop via Thunderbolt™ 3, Thunderbolt™ 4 or USB-C™.
Enable magnetic function
If your smartphone does not have a magnetic back, you can place the included metal ring between your device and the phone case. This allows the magnetic enclosure to be securely attached to your smartphone.
Combo enclosure
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.
SSD installation without tools
The special feature of this enclosure is that no tools are required to install the M.2 SSD.
• Connectors:
external: 1 x USB 10 Gbps USB Type-C™ female
internal: 1 x M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2230 with key M or key B+M based on SATA or PCIe
(NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided
assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• LED indicator
• Metal housing
• Hot Plug, Plug & Play
• Dimensions (LxWxH): ca. 61 x 61 x 13 mm
• Android 14.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 14.5 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPhone 15 Pro or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™
4 port
Package content
• External enclosure M.2
• Cable USB-C™ male to USB-C™ male, length ca. 13 cm
• 1 x metal ring
• 2 x thermal conductive pad
• 1 x rubber nipple
• User manual
