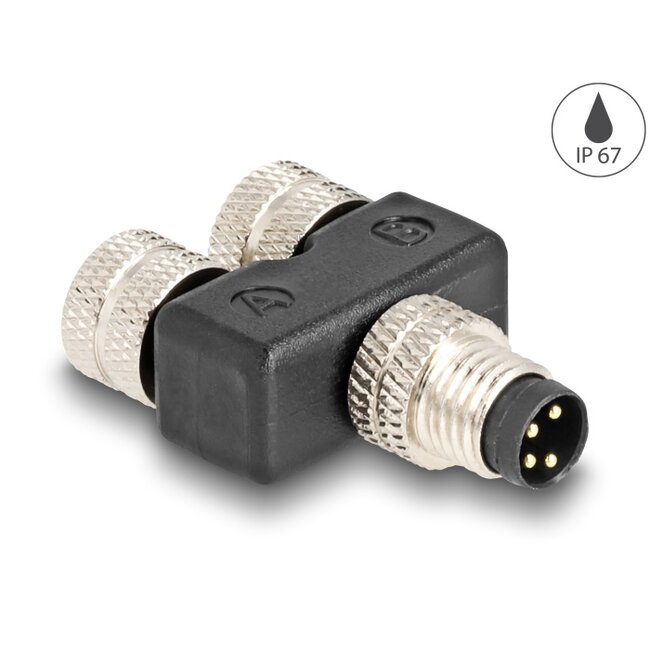

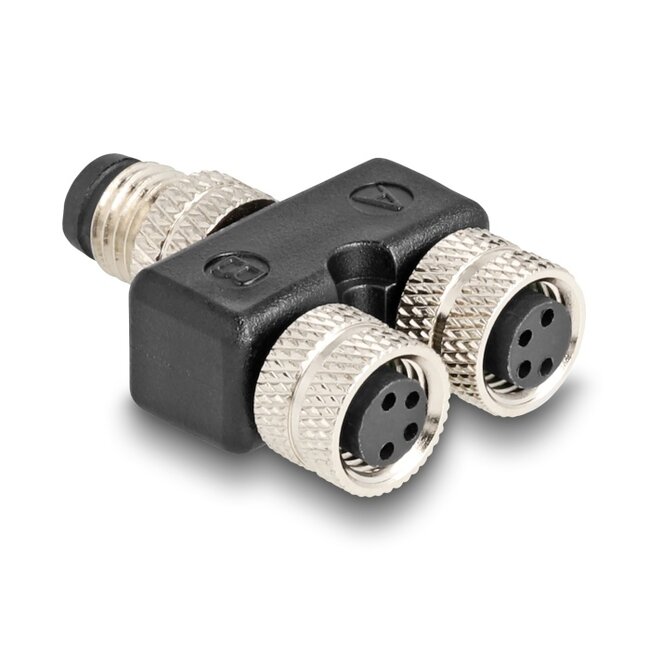

This industrial Y-splitter by Delock can be used to connect various components with M8 connectors, e.g. for machine control or automation.

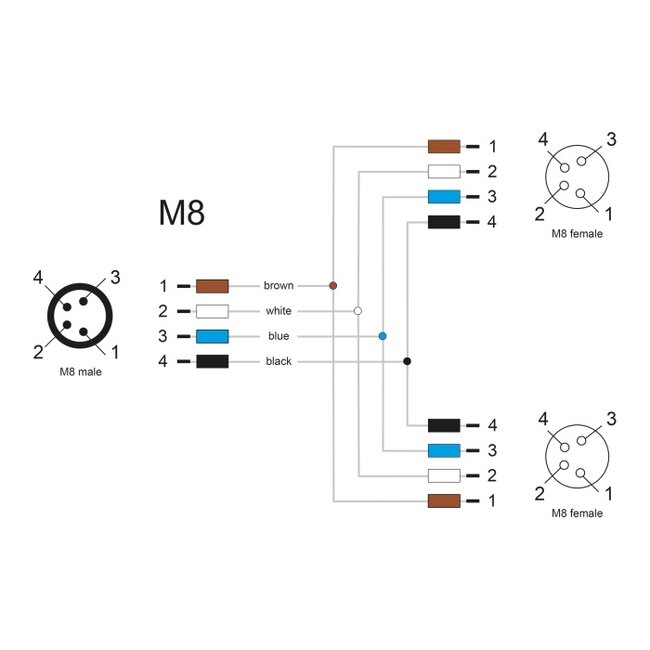

Specification• Connectors:
1 x M8 A-coded 4 pin male
2 x M8 A-coded 4 pin female
• Housing material: PVC
• Contacts gold-plated
• Operating voltage: max. 60 V
• Current: max. 3 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Thread size: M8 x 1.0 mm
• Colour: black
• Dimensions (LxWxH): ca. 24 x 22 x 10 mm
• A free M8 female port
• A free M8 plug
Package content
• Y-splitter
