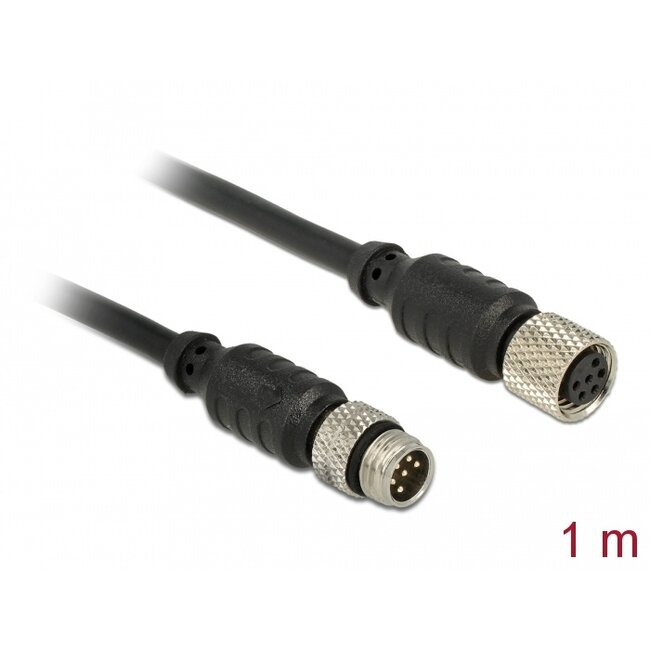

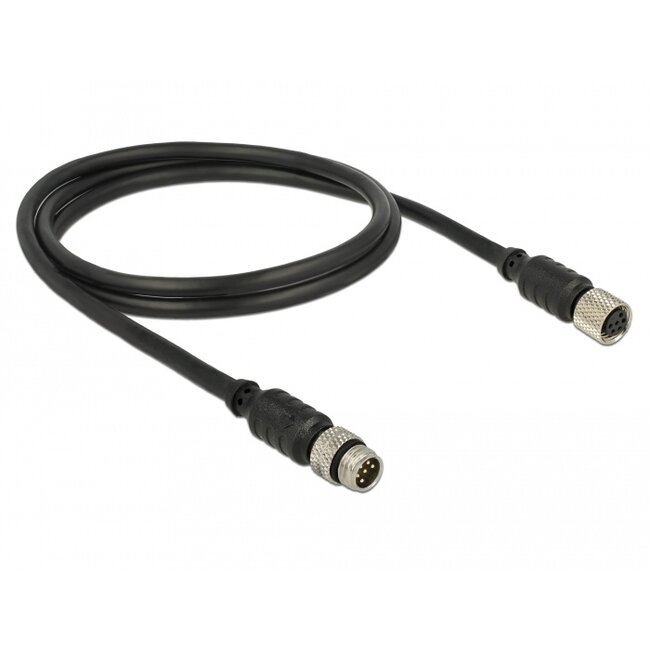

This M8 extension cable by Delock enables the connection of various sensors and actuators. The cable is waterproof and therefore also suitable for outdoor use.
Note
Pin assignment
Â
| P1 M8 male | Â | P2 M8 female |
| red | 1 - 1 | red |
| black | 2 - 2 | black |
| green | 3 - 3 | green |
| brown | 4 - 4 | brown |
| orange | 5 - 5 | orange |
| yellow | 6 - 6 | yellow |
• Connectors:
1 x M8 male >
1 x M8 female
• Cable gauge: 28 AWG
• Rated voltage: 5 V / DC
• Waterproof
• Cable colour: black
• Cable diameter: ca. 4 mm
• Cable length (L): ca. 1 m
• Device with a free M8 port
Package content
• M8 Sensor- / Actuator cable
