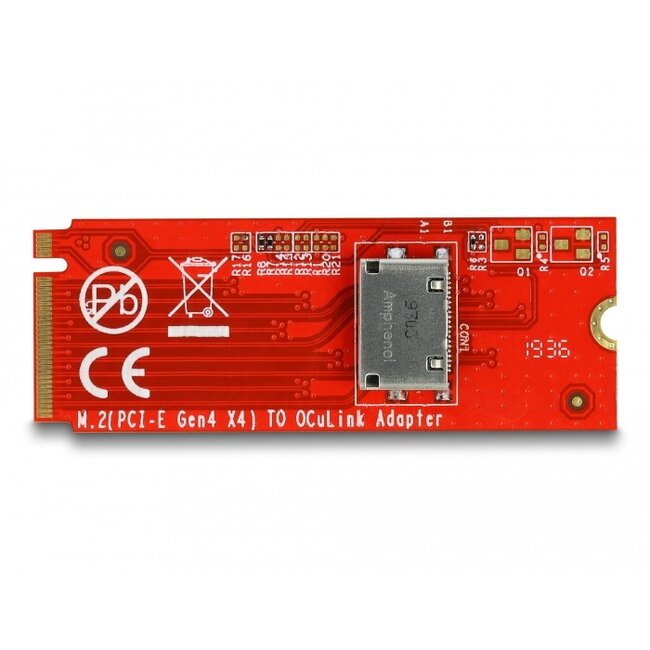

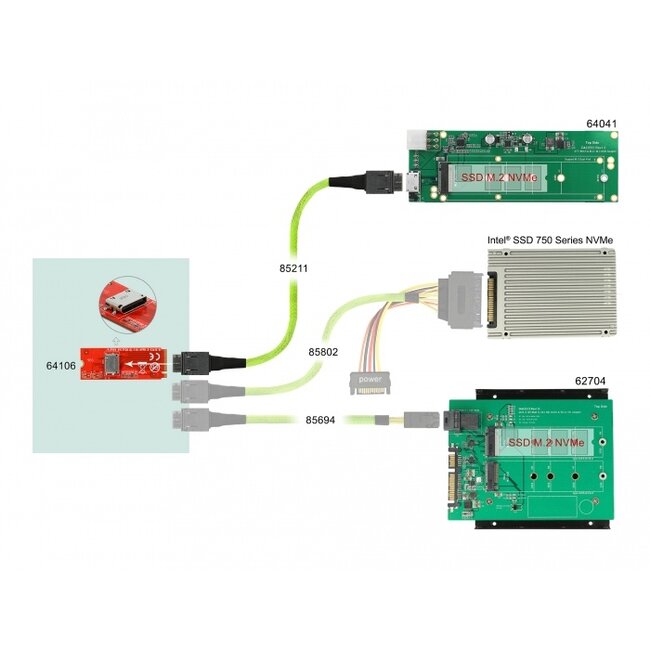

This converter by Delock expands the system by one SFF-8612 interface. It can be connected e.g. one SSD by using an optional cable. The converter transmits PCI Express signals using the NVMe protocol.
Specification• Connectors:
1 x 67 pin M.2 Key M male
1 x OCuLink SFF-8612 female
• Interface: PCIe x4 Rev. 4.0

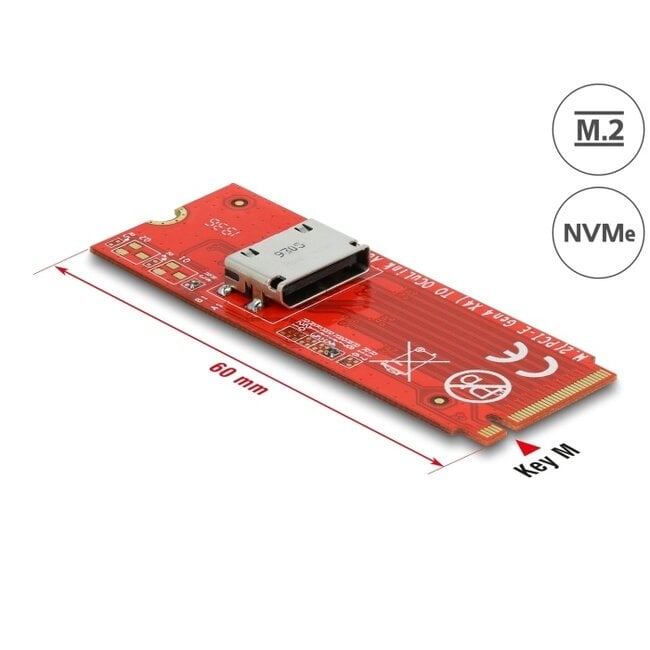

• Form factor: M.2 2260
• Suitable for M.2 slot with key M based on PCIe
• Data transfer rate up to 64 Gbps
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Linux Kernel 4.6.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• A free M.2 interface with key M
Package content
• Converter M.2 to SFF-8612
• User manual
