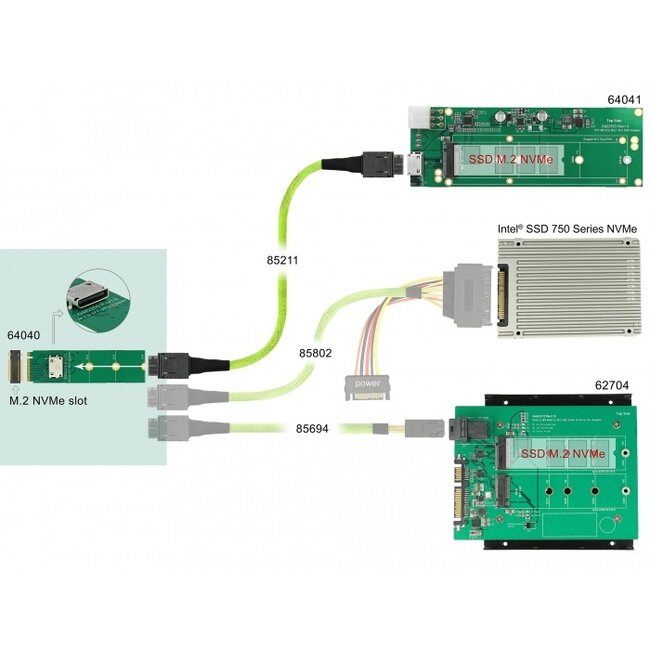

This converter by Delock expands the system by one SFF-8612 interface. It can be connected e.g. one SSD by using an optional cable. The converter transmits PCI Express signals using the NVMe protocol.
Specification• Connectors:
1 x 67 pin M.2 Key M male
1 x OCuLink SFF-8612 female
• Interface: PCIe
• Form factor: M.2 2280
• Suitable for M.2 slot with key M based on PCIe
• Compatible to PCI Express V3.0
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Supports SFF-9402 for PCIe REFCLK
• Supports Intel IDF 2015 PCIe REFCLK
• Linux Kernel 4.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• A free M.2 interface with key M
Package content
• Converter M.2 to SFF-8612
• Mounting material
• User manual
