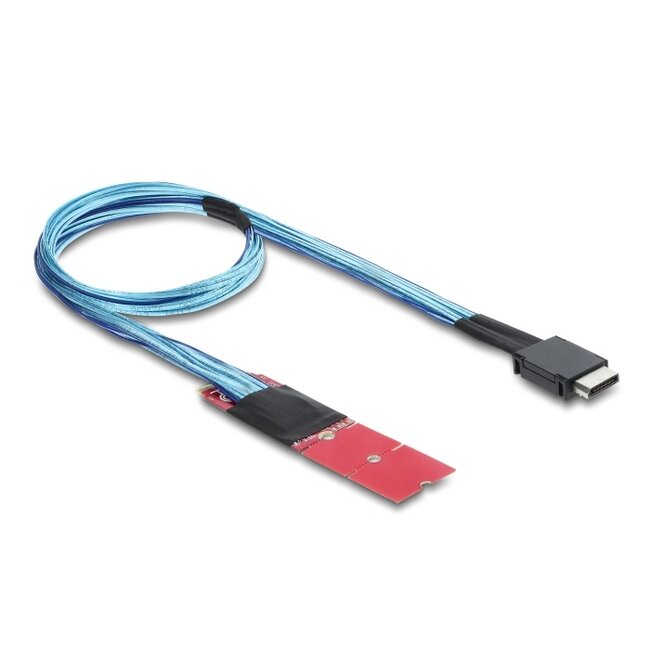

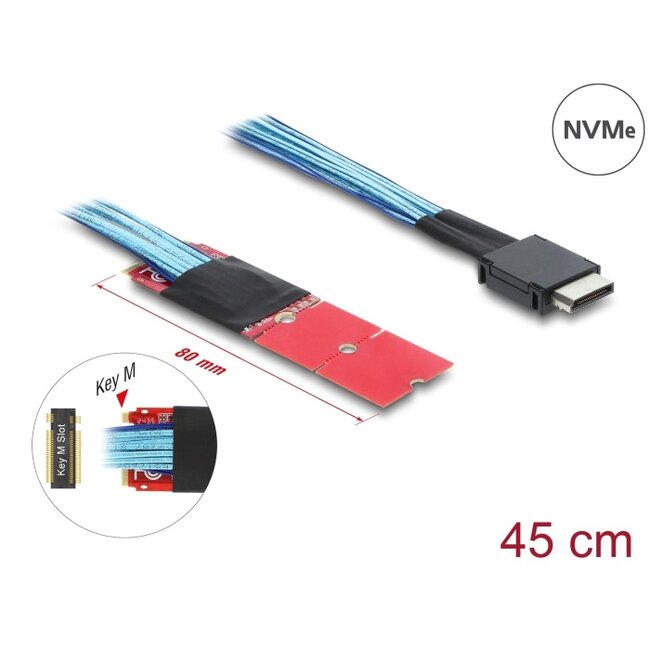

This converter by Delock expands the system by one OcuLink SFF-8611 interface. An SSD, for example, can be connected to this port. The converter transmits PCI Express signals using the NVMe protocol. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 or 42 mm.
Specification• Connectors:
1 x M.2 key M male
1 x OCuLink SFF-8611 male
• Interface: PCIe x4 Rev. 4.0
• Form factor: M.2 2280 (2260, 2242)
• Suitable for M.2 slot with key M based on PCIe
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 80 x 22 x 2 mm
• Cable length: ca. 45 cm
• Converter M.2 to SFF-8611
• User manual
