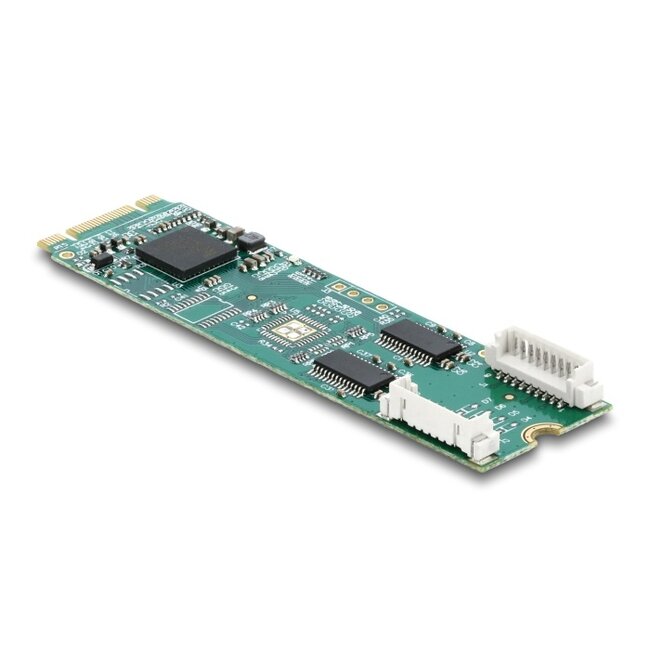

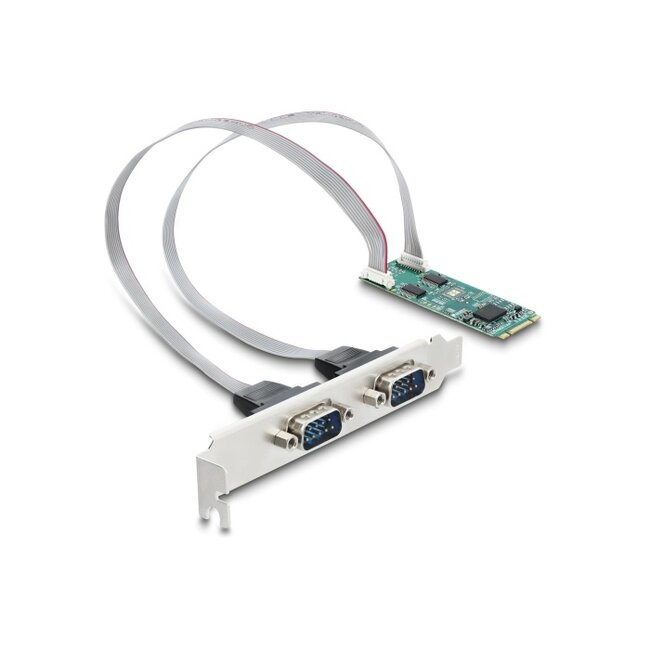

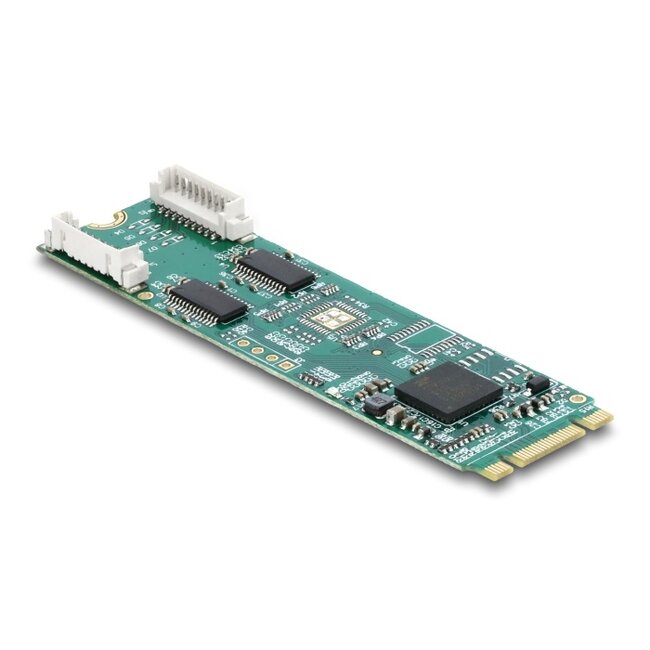

The M.2 to serial card by Delock expands the PC by two external RS-232 port. Different devices such as scanners, protocol converters, IoT devices etc. can be connected to the card. With the help of the included slot brackets and RS-232 cables, the M.2 card is suitable for installation into any computer case.
Specification• Connectors:
1 x M.2 key B+M male
2 x serial RS-232 DB9 male
• Chipset: MaxLinear 17V352
• Form factor: M.2 2280
• Interface: PCIe 2.0
• Compatible with 16C550 UART
• Data transfer rate up to 921.6 Kbps
• FIFO:
2 x 256 Byte - RX
2 x 256 Byte - TX
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS or DTR / DSR, software XON / XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Cable length incl. connectors: ca. 30 cm
• Dimensions (LxWxH): ca. 80 x 22 x 8 mm
• Linux Kernel 2.6.32 or above
• Windows 10/10-64/11

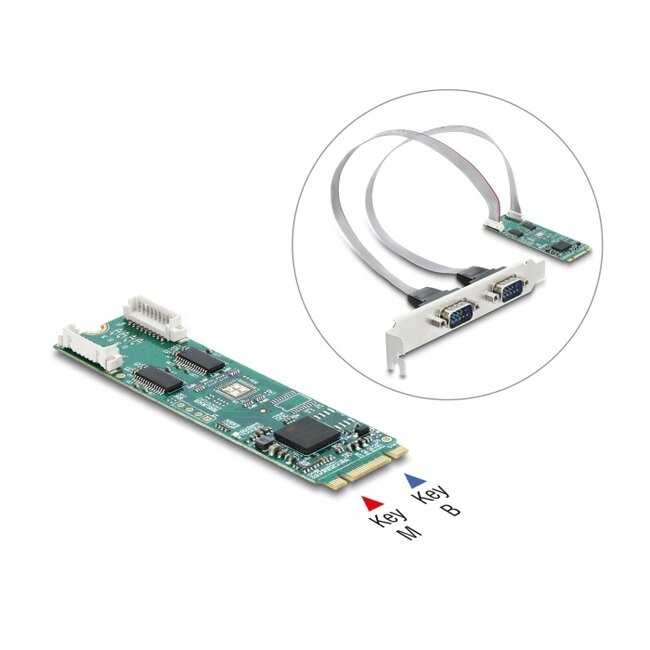

• A free M.2 key B or key M slot
Package content
• M.2 card
• 1 x fixing screw for M.2 module

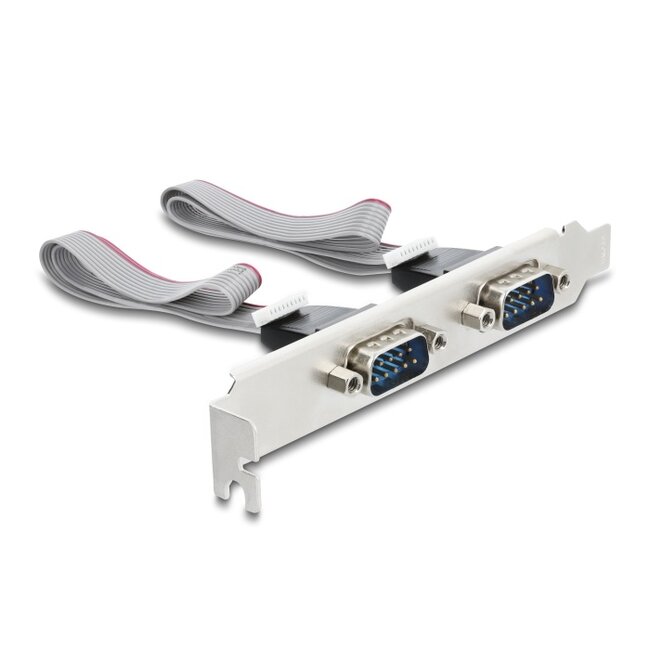

• 2 x serial connecting cable (ca. 30 cm)

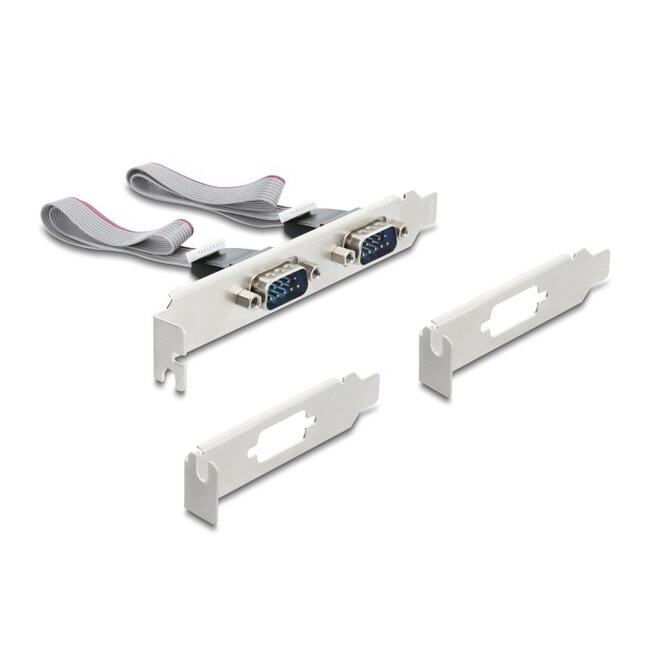

• 2 x low profile bracket
• 1 x standard bracket
• User manual
