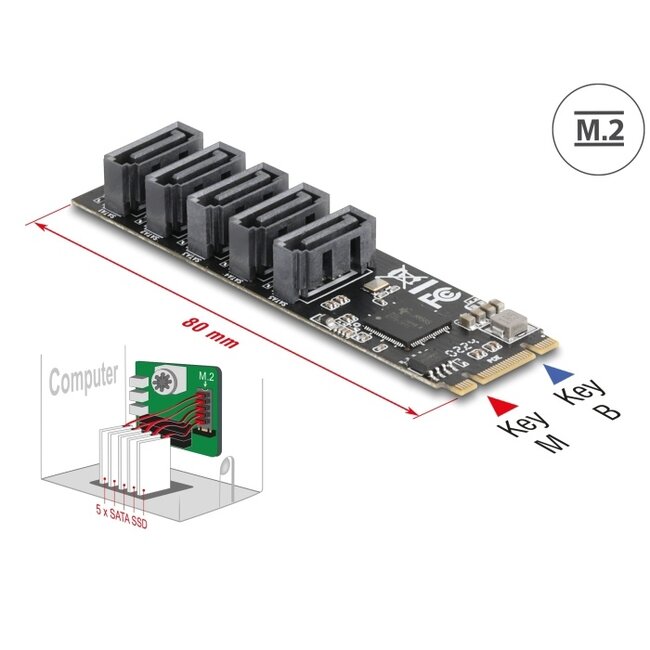

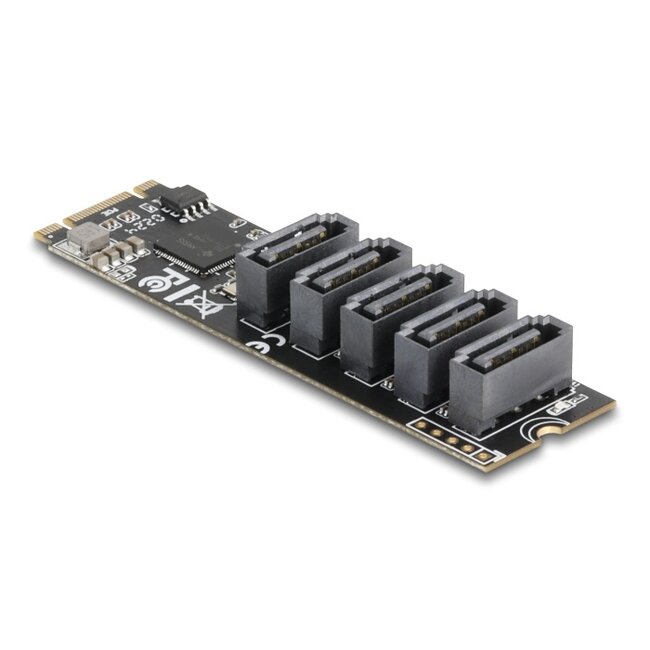

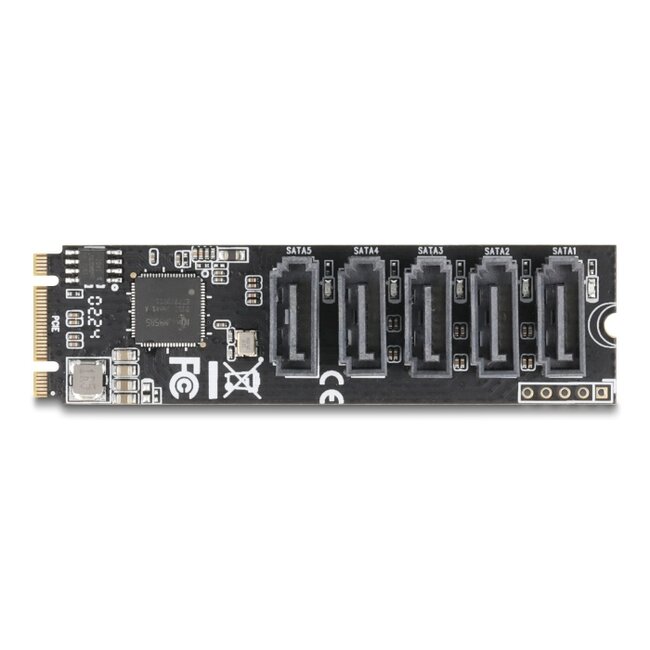

This M.2 to SATA controller by Delock expands the system by five SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the controller.
Specification• Connectors:
1 x M.2 key B+M male
5 x SATA 6 Gb/s 7 pin plug
• Chipset: JMicron JMB585
• Interface: PCIe
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on PCIe
• 5 x LED indicator for power and access
• Data transfer rate up to 6 Gb/s
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
• Dimensions (LxWxH): ca. 80 x 22 x 10 mm
• Linux Kernel 6.5 or above
• Windows 10/10-64/11
• A free M.2 key M or key B slot
Package content
• M.2 to SATA controller

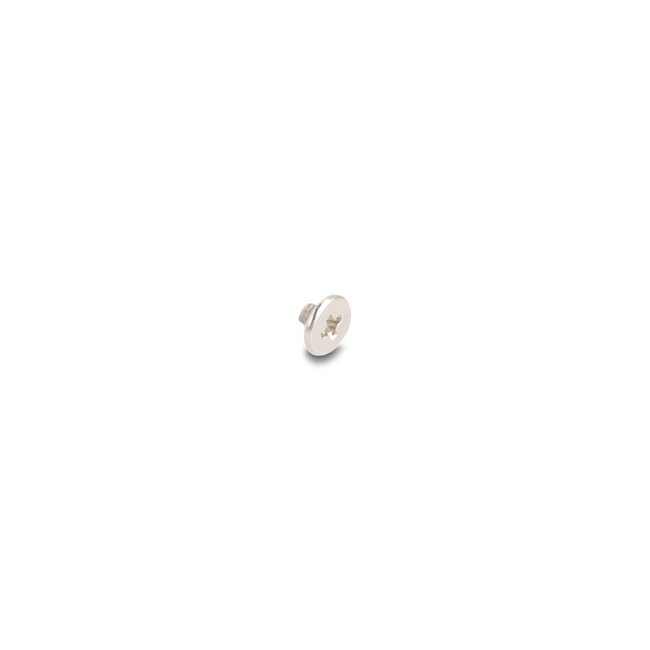

• Screw
• User manual
