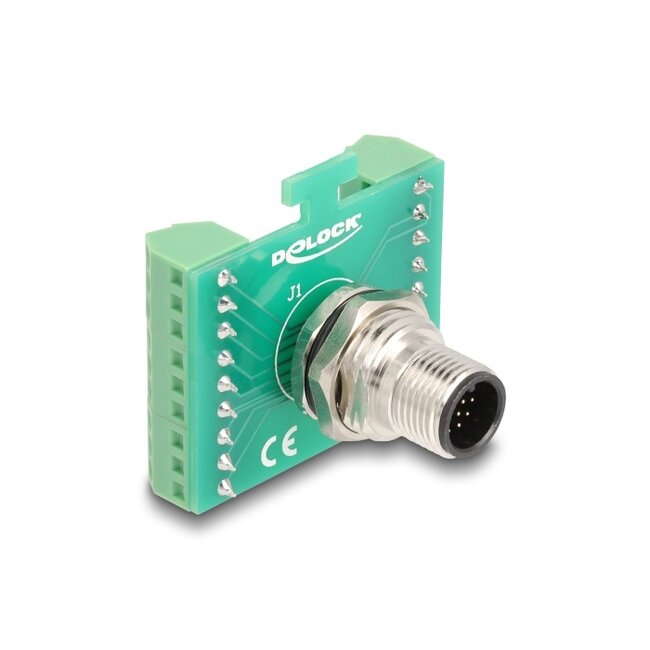

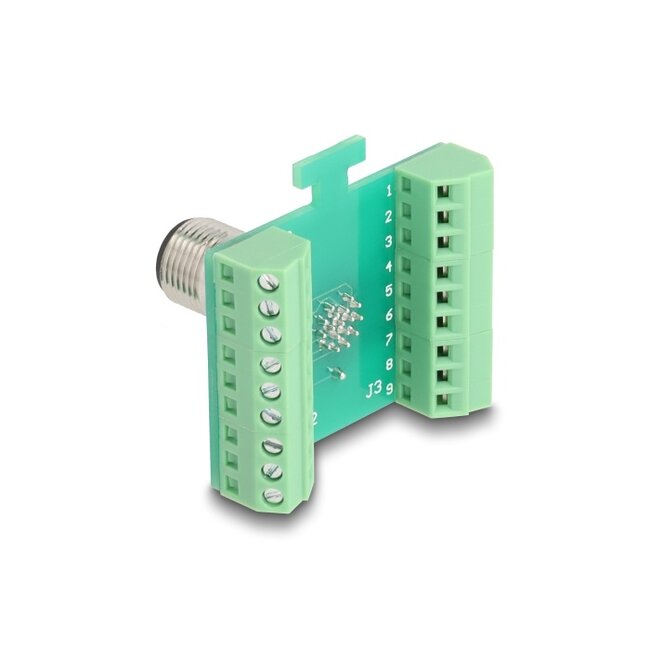

The M12 adapter by Delock enables a simple and secure connection between devices with M12 connectors and electrical circuits that use terminal blocks.
Various areas of application
The adapter offers a flexible solution for various applications in industry, automation technology, building automation and other areas where a reliable connection is required.
For installation
Due to its compact dimensions, the module is very well suited for installation in a switch cabinet.
• Connectors:
1 x M12 plug 17 pin A-coded
1 x 18 pin terminal block
• Installation dimensions: 16.1 x 13.5 mm
• M16 external thread
• Cable gauge: 26 - 16 AWG
• Pitch: 3.50 mm
• Operating temperature: -40 °C ~ 80 °C
• Dimensions (LxWxH): ca. 41.9 x 38.9 x 37.7 mm
• M12 adapter
