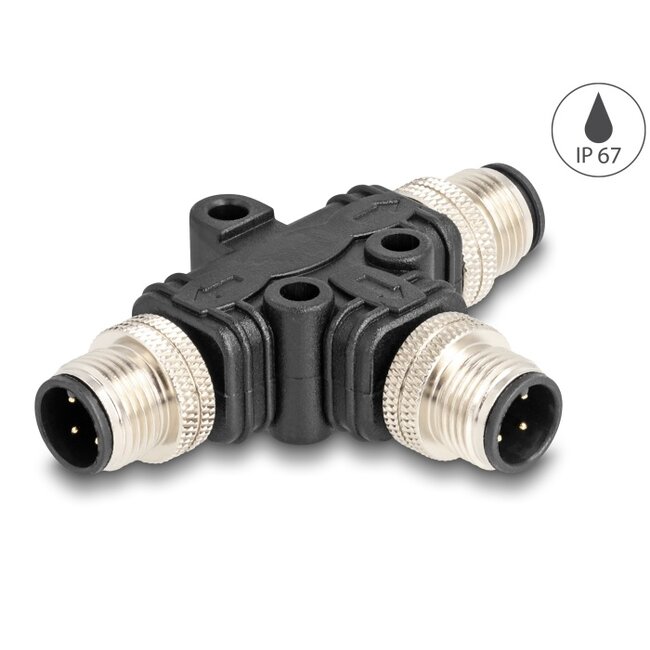

This industrial T-splitter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

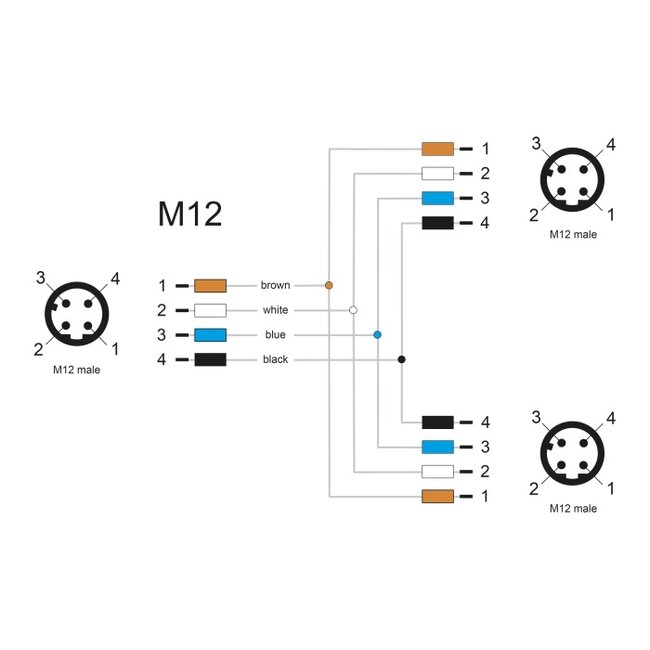

Specification• Connectors:

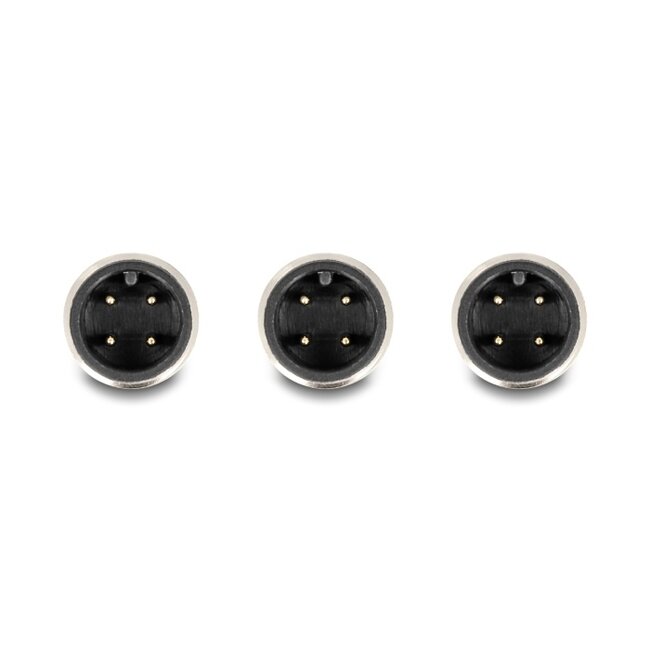

1 x M12 A-coded 4 pin male
2 x M12 A-coded 4 pin male
• Housing material: PVC
• Contacts gold-plated
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Thread size: M12 x 1.0 mm
• Colour: black
• Dimensions (LxWxH): ca. 45 x 37 x 16 mm
• A free M12 female port
• Two free M12 female ports
Package content
• T-splitter
