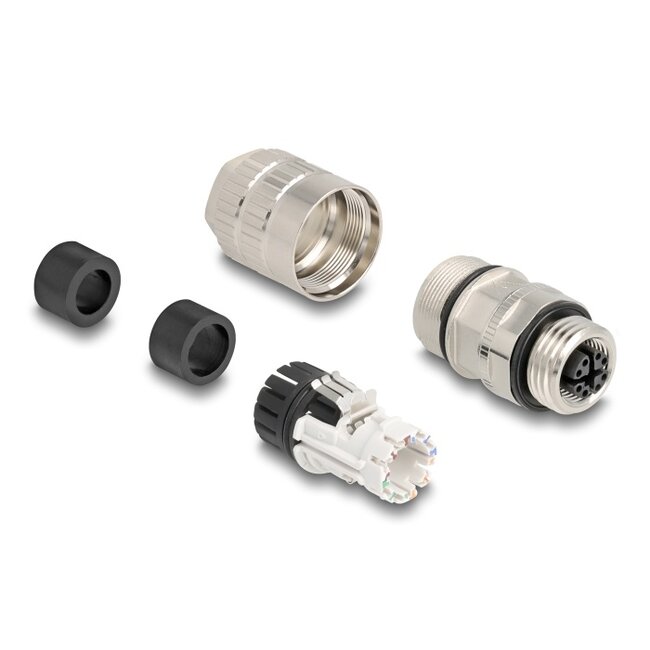

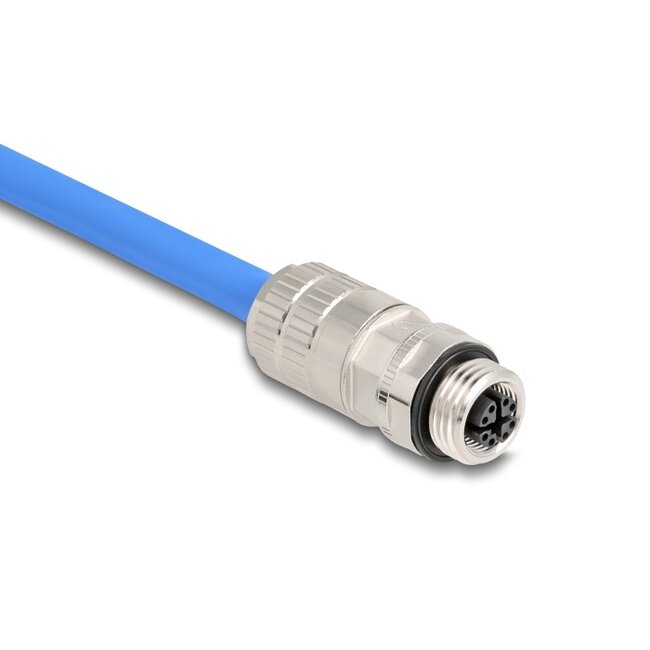

This industrial connector by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
Specification• Connectors:
1 x M12 female X-coded 8 pin
1 x LSA block
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and IEC 61076-2-109, and ANSI/TIA 568-D.2
• Supports IEEE 802.3an: 10GBASE-T
• Supports PoE++
• Material: zinc diecast
• For solid or stranded wire up to 0.644 mm (22 - 26 AWG)
• For cable diameter from 5.5 - 9.0 mm
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67
• Dimensions (LxD): ca. 48.5 x 20.1 mm
• 16 mm spanner for assembly
Package content
• Connector
• Installation manual
