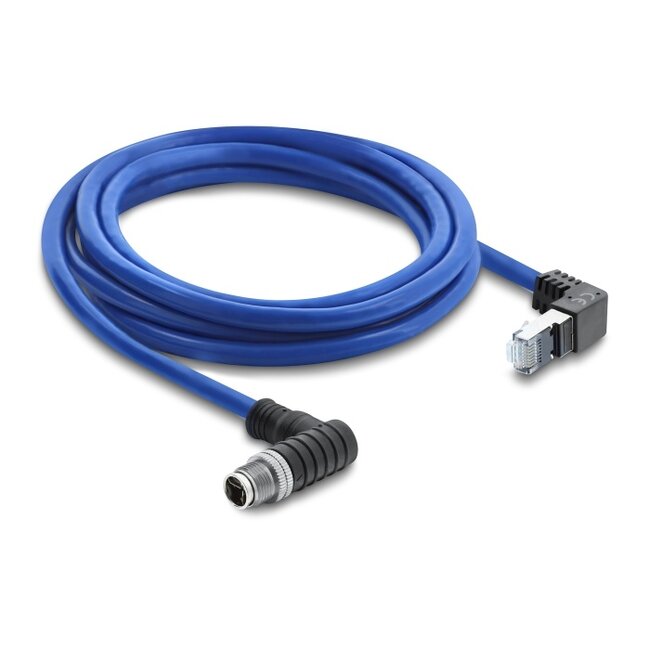

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
Angled connectors

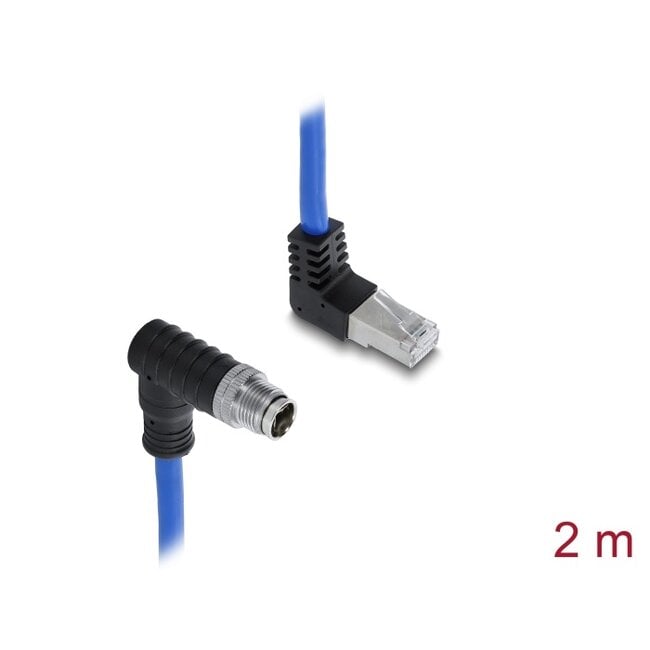

The M12 connector is angled downwards at 90°, while the RJ45 connector is angled upwards at 90°. This angled design allows for space-saving installation in confined areas such as control cabinets or machinery housings. It also reduces strain on the cable and ensures a reliable, long-lasting connection.
• Connectors:
1 x M12 male X-coded 8 pin 90° downwards angled
1 x RJ45 plug 90° upwards angled
• Cat.6A specification
• Shielded (S/FTP)
• Cable gauge: 26 AWG
• Cable jacket material: PUR
• Cable diameter: ca. 6.5 mm
• Operating voltage: max. 30 V
• Current: max. 0.5 A
• Operating temperature: -20 °C ~ 70 °C
• Protection class: IP67 (M12)
• Colour: blue
• Length incl. connectors: ca. 2 m
• M12 cable
