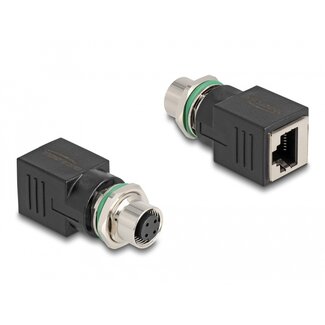

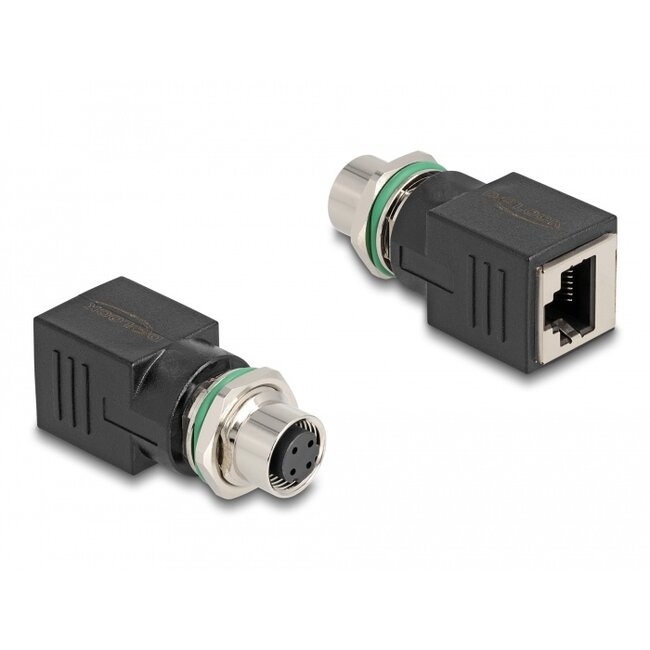

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

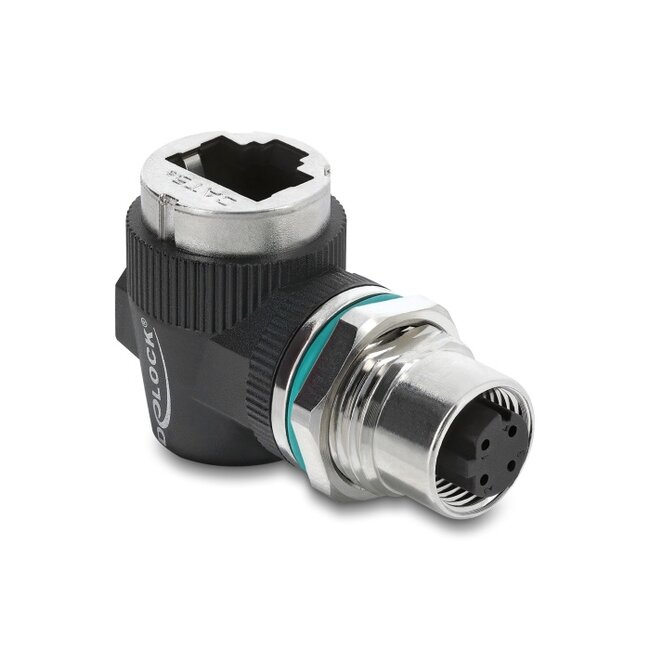

Round built-in version – angled design
The round built-in version of the M12 adapter enables space-saving and secure integration directly into switch panels, housings or connection panels. The angled design is ideal for tight installation situations and ensures clean, structured cable routing in industrial applications.
• Connectors:

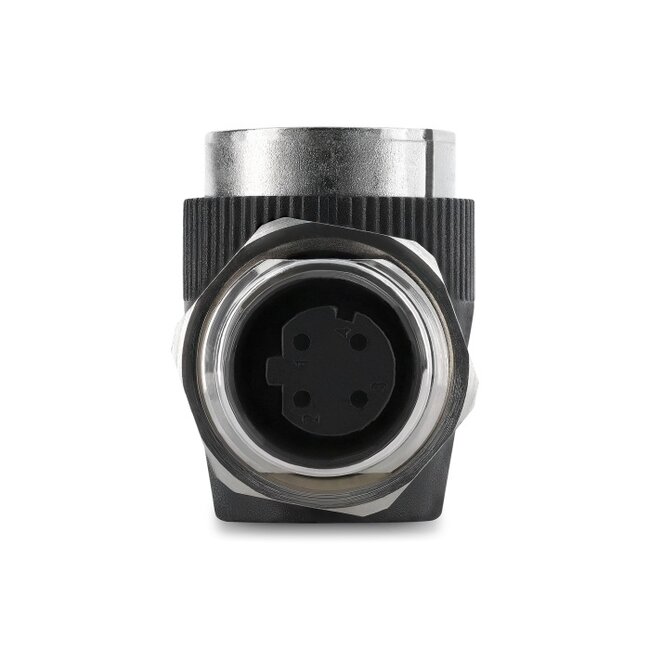

1 x M12 female D-coded 4 pin

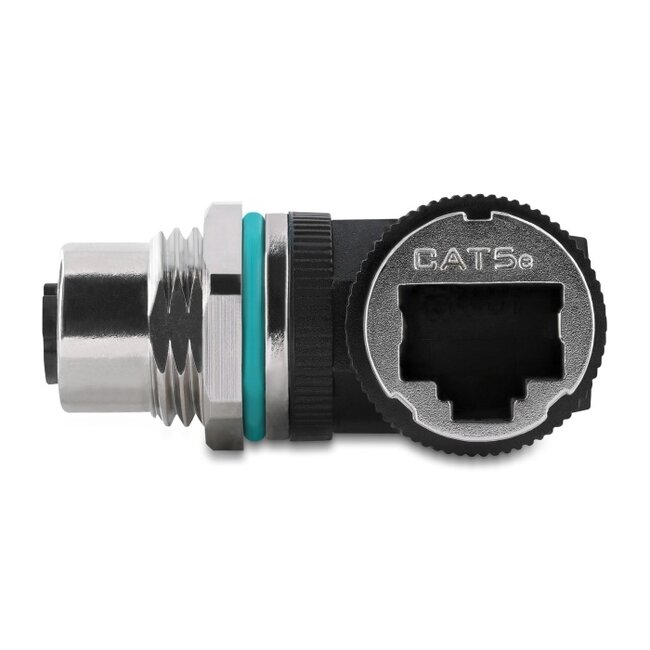

1 x RJ45 jack 90° angled
• Cat.5e specification
• Shielded
• Round built-in version
• Angled design
• Installation dimensions: 16.3 x 13.8 mm
• Silicone sealing ring blue
• Housing material: PE
• M16 x 1.5 mm external thread
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67 (M12)
• Colour: black
• Dimensions (LxD): ca. 43.4 x 24.5 mm
• Adapter
