This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

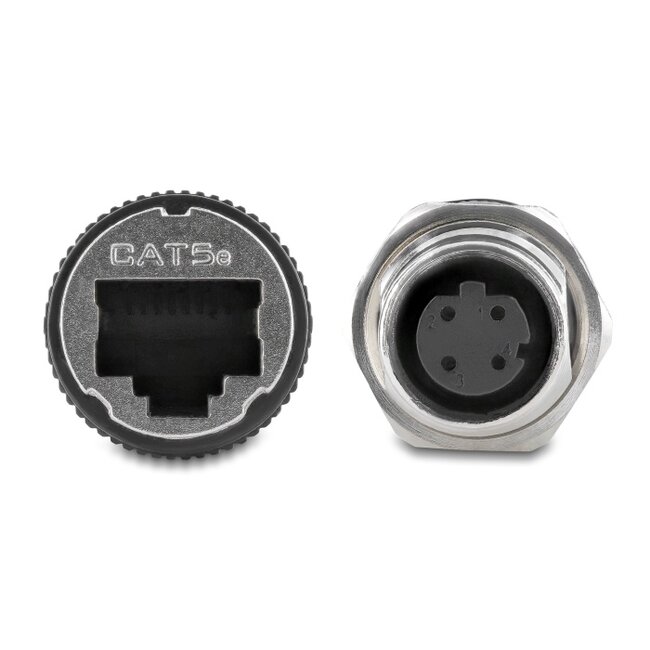

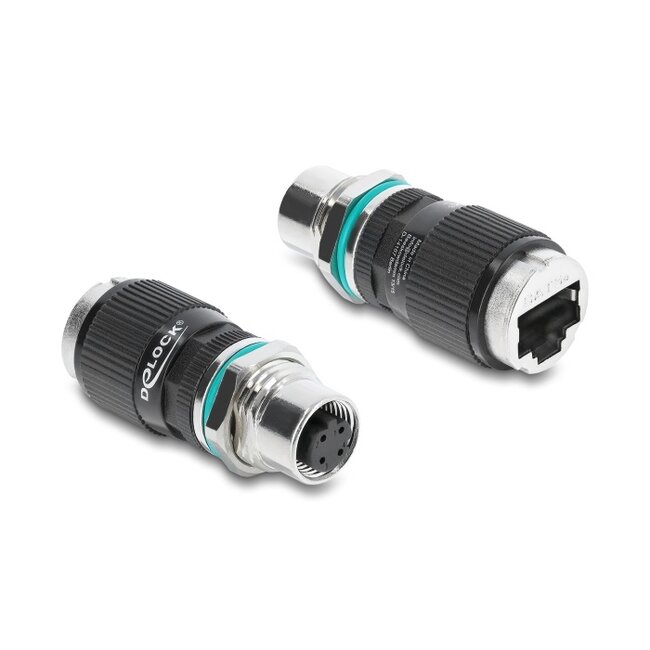

Round built-in version – straight design
The round built-in version of the M12 adapter enables space-saving and secure integration directly into switch panels, housings or connection panels. The straight design makes the adapter particularly easy to install. It ensures a clean, professional connection between the cable and the device and is ideal for installation in control cabinets, enclosures and industrial network environments.
• Connectors:
1 x M12 female D-coded 4 pin
1 x RJ45 jack
• Cat.5e specification
• Shielded
• Round built-in version
• Straight design
• Installation dimensions: 16.3 x 13.8 mm
• Silicone sealing ring blue
• Housing material: PE
• M16 x 1.5 mm external thread
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67 (M12)
• Colour: black
• Dimensions (LxD): ca. 49.3 x 20.5 mm
• Adapter
