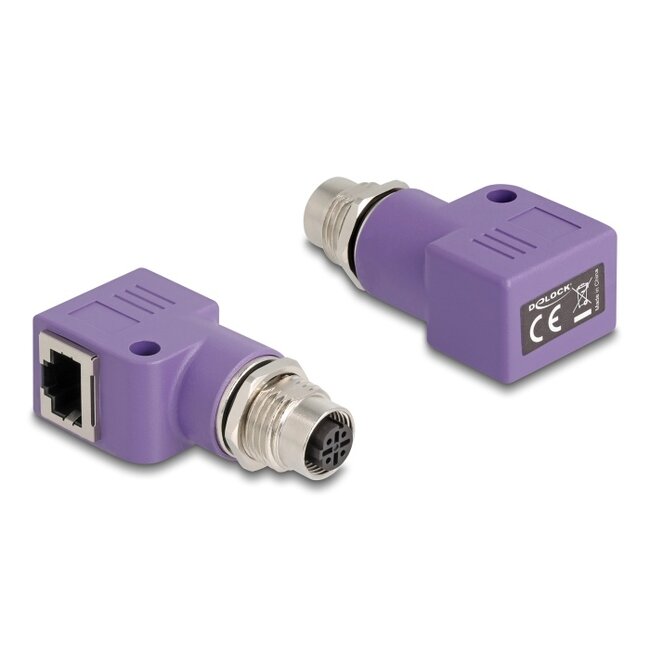

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
With mounting hole
The adapter can be attached to a plate with a corresponding cut-out.
• Connectors:

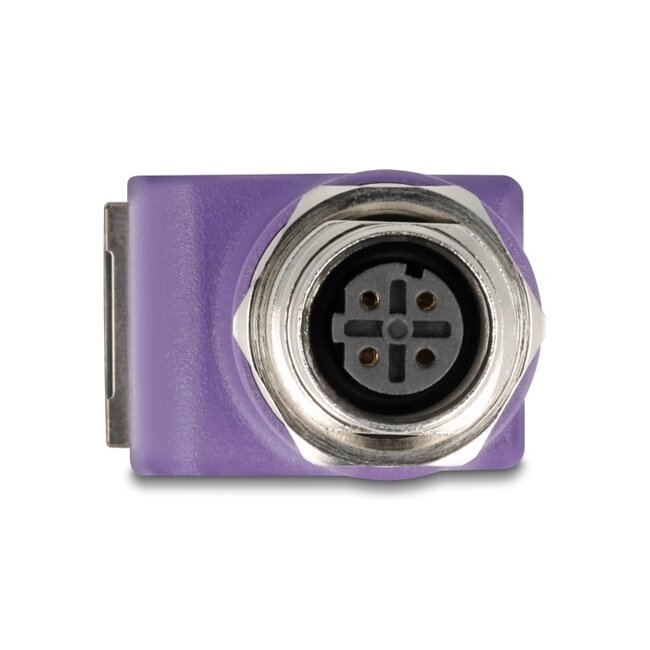

1 x M12 female 4 pin D-coded
1 x RJ45 jack 90° angled
• Cat.5e specification
• Installation dimensions: 16.1 x 13.6 mm
• With mounting hole
• Mounting hole diameter: ca. 2.7 mm
• Housing material: PVC / metal
• Shielded (STP)
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 250 V
• Current:
M12: max. 4 A
RJ45: max. 1.5 A
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67 (M12), IP20 (RJ45)
• Colour: violet
• Dimensions (LxWxH): ca. 55.9 x 20.0 x 19.0 mm
• M12 adapter
