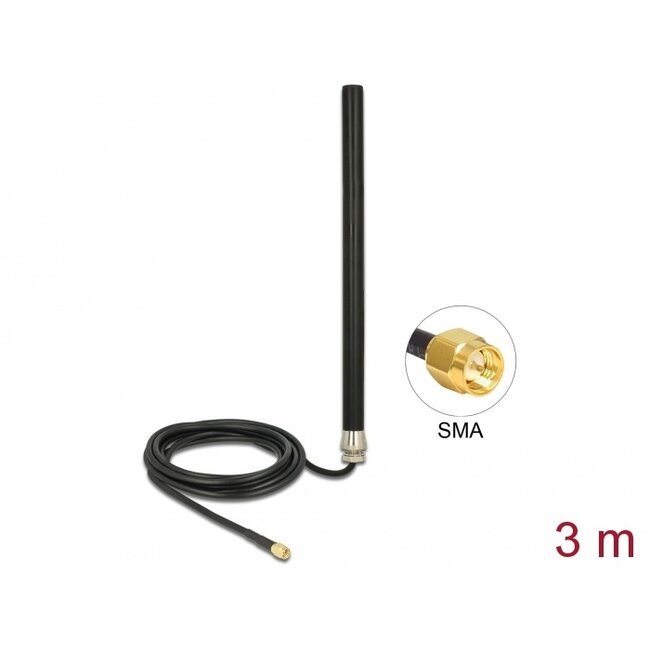

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification• Connector: 1 x SMA plug
• Frequency range:
690 - 960 MHz
1710 - 2170 MHz
2400 - 2700 MHz
• ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Transmission power: max. 10 W
• Antenna type: rod antenna

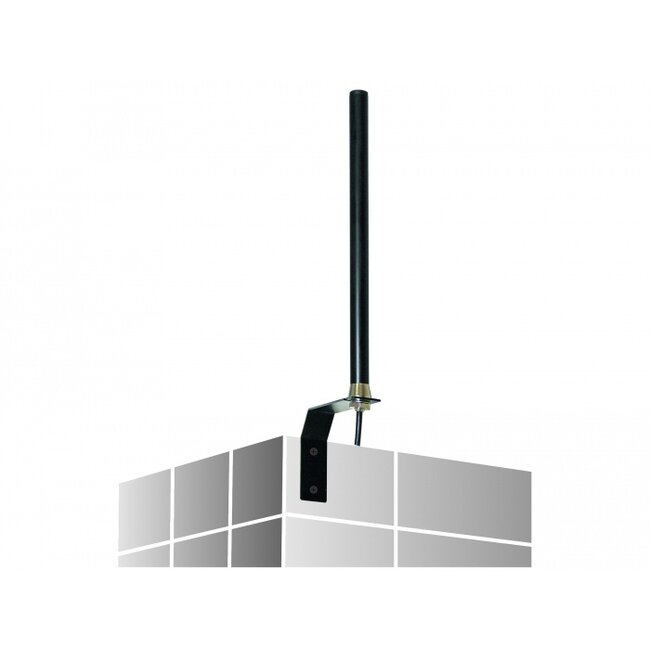

• Wall mounting brackets
• Operating temperature: -30 °C ~ 70 °C
• Housing material: plastic
• Base: metal
• Colour: black
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable diameter: ca. 5 mm
• Cable attenuation: 0.57 dB @ 1 GHz per meter
• Cable length: ca. 3 m

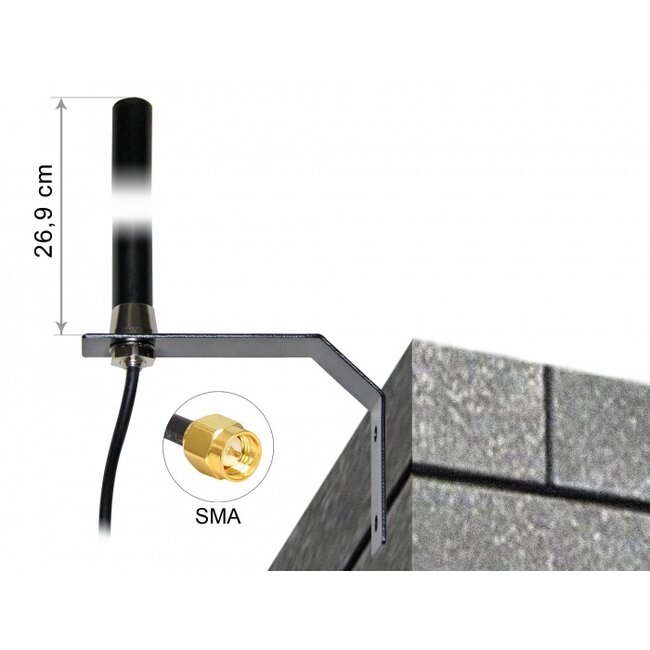

• Dimensions (LxD): ca. 26.9 x 1.6 cm
• Device with a free SMA jack
Package content
• Antenna
• Mounting brackets and screws
