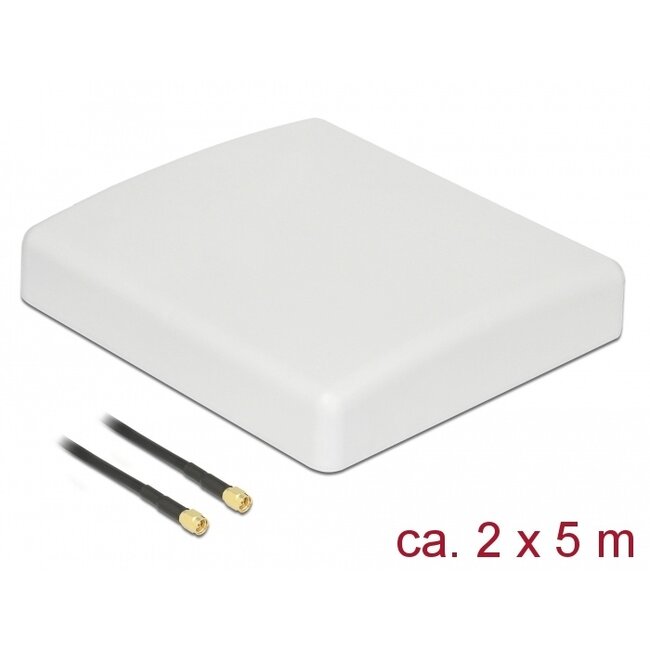

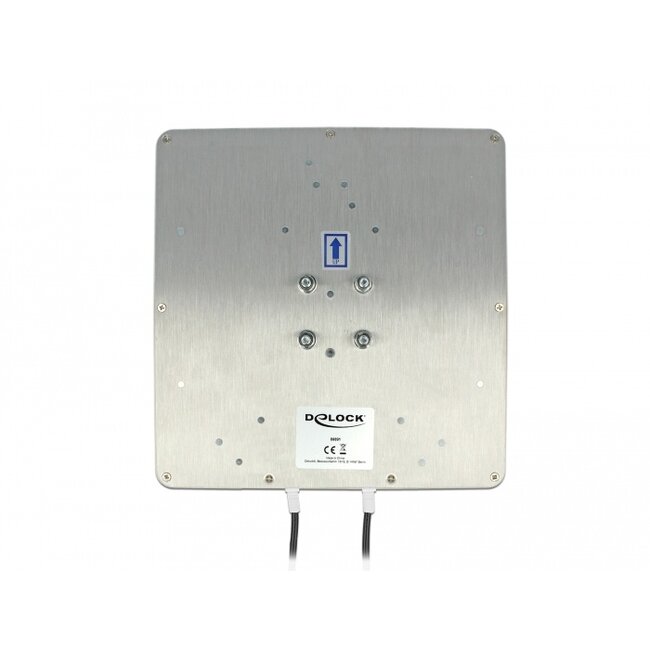

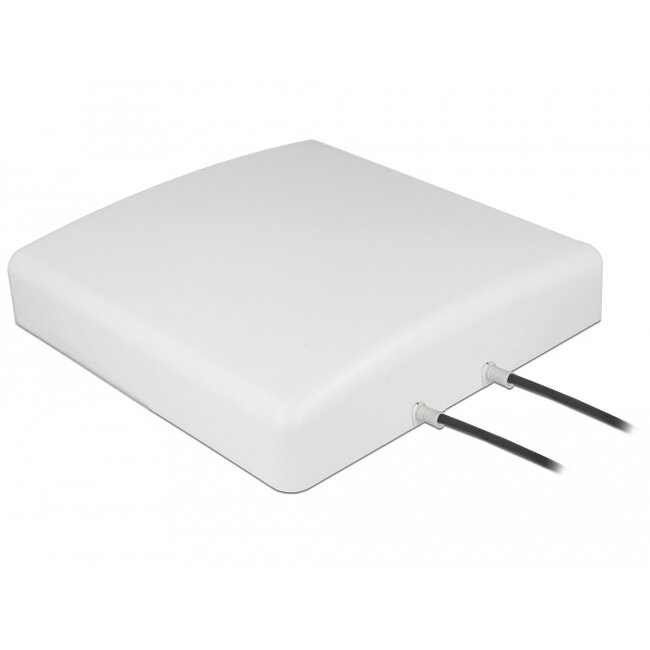

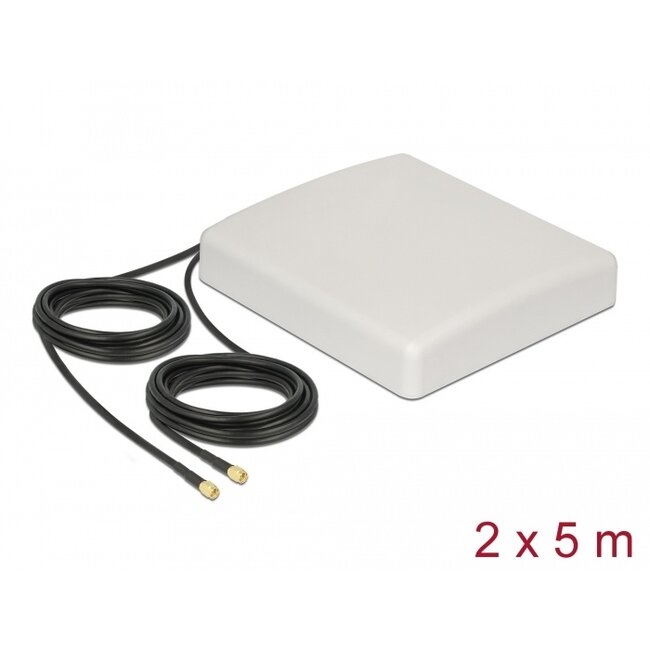

This MIMO antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth and LoRa 868 MHz / 915 MHz.

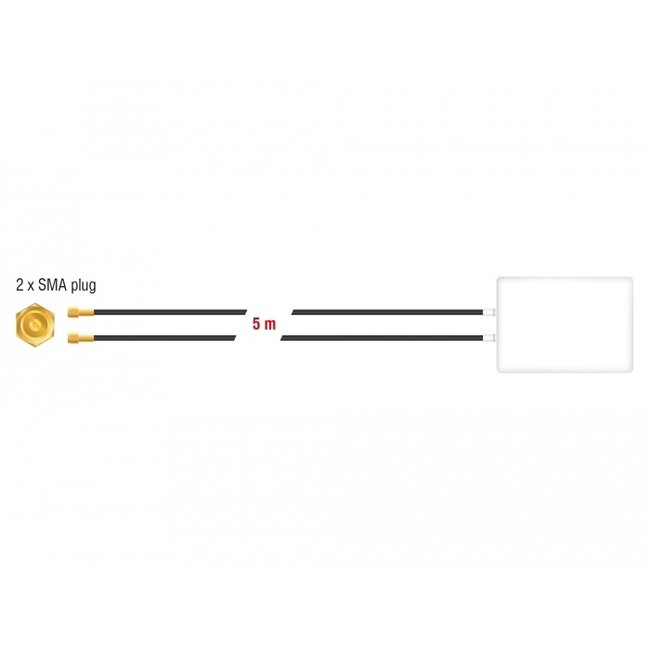

Specification• Connectors: 2 x SMA plug
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth,
LoRa 868 MHz / 915 MHz, MIMO
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 8 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical, horizontal
• HBW horizontal beamwidth: 75°
• VBW vertical beamwidth: 65°
• Cable type: RG-58
• Cable length incl. connectors: ca. 5 m
• Operating temperature: -40 °C ~ 65 °C
• Housing material: ABS
• Weight: ca. 0.7 kg
• Dimensions (LxWxH): ca. 23.7 x 22.9 x 5.0 cm
• Max. Pole diameter: ca. 5.5 cm
• Device with two free SMA connectors
Package content
• Antenna
• Mounting material:
Nut, washer, mounting bracket and pole mounting bracket
