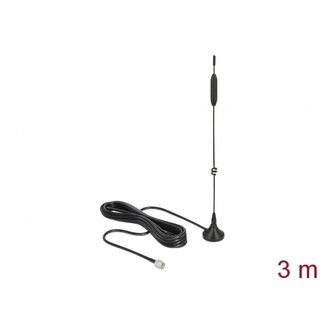

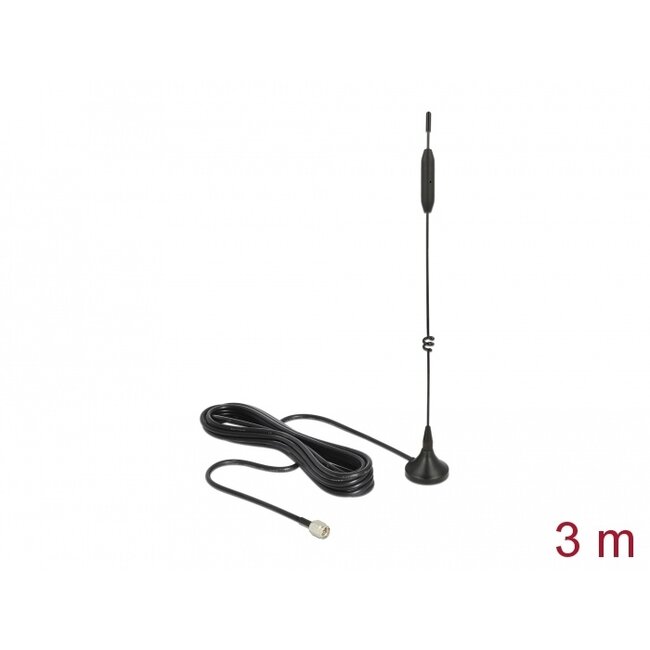

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT and LoRa .
Specification• Connector: 1 x SMA plug
• Frequency range:
700 - 960 MHz
1700 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Antenna gain: 3 - 5 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174 A/U
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Antenna length including magnetic base: ca. 24.1 cm
• Diameter magnetic base: ca. 29.4 mm
• Device with a free SMA jack
Package content
• Antenna
