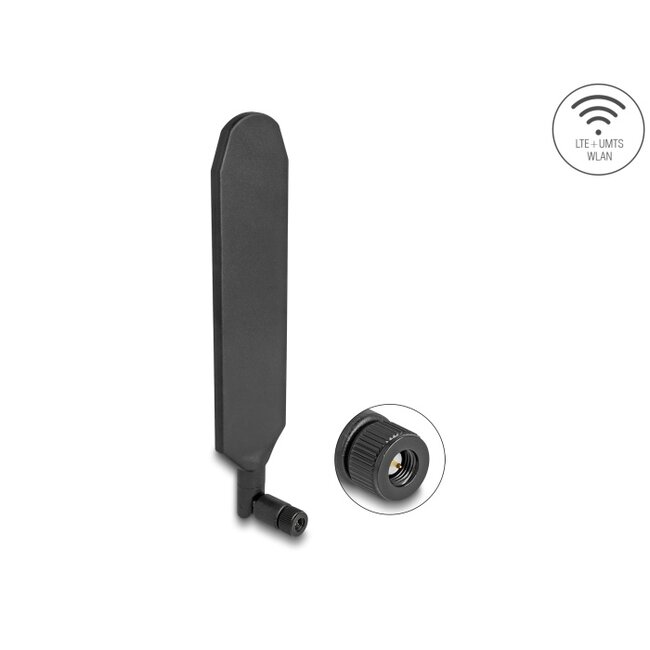

This LTE GNSS antenna by Delock allows the usage of different LTE bands as well as worldwide reception of GNSS signals indoors. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
• Connector: 1 x SMA plug
• LTE, GNSS, Bluetooth, GSM, UMTS, WLAN 2.4, ZigBee, Z-Wave, DECT, LoRa
• Frequency range:
700 - 960 MHz
1575.42 MHZ
1710 - 2700 MHz
• Antenna gain:
700 - 960 MHz: 1.5 dBi
1575.42 MHz 1.8 dBi
2100 - 2700 MHz: 3.0 dBi
• Impedance: 50 Ohm
• VSWR:
700 - 960 MHz: 3.0
1575 - 2700 MHz: 2.0
• Operating temperature: -40 °C ~ 80 °C
• Housing material: ABS
• Dimensions (LxWxH): ca. 209 x 42 x 6 mm
• Device with a free SMA connector
Package content
• Antenna
