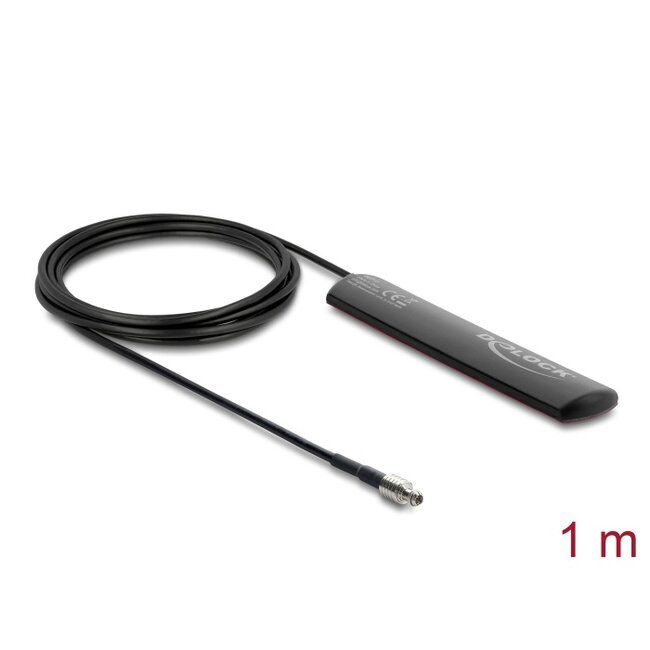

This LTE antenna can be installed indoors and can be used for reception of different bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee and Z-Wave.
Specification• Connector: 1 x TS9 plug
• LTE band: 1-10; 12-20; 23; 25-30; 33-41; 43; 44
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4GHz, ZigBee, Z-Wave, DECT, SRD
• Antenna gain: 1.5 dBi
• Impedance: 50 Ohm
• VSWR: < 2.5
• Operating temperature: -40 °C ~ 75 °C
• Housing material: ABS UV resistant
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 0.93 dB @ 800 MHz per meter
• Cable length: ca. 1 m
• Dimensions (LxWxH): ca. 115 x 22 x 7 mm
• Device with one free TS9 port
Package content
• LTE antenna
