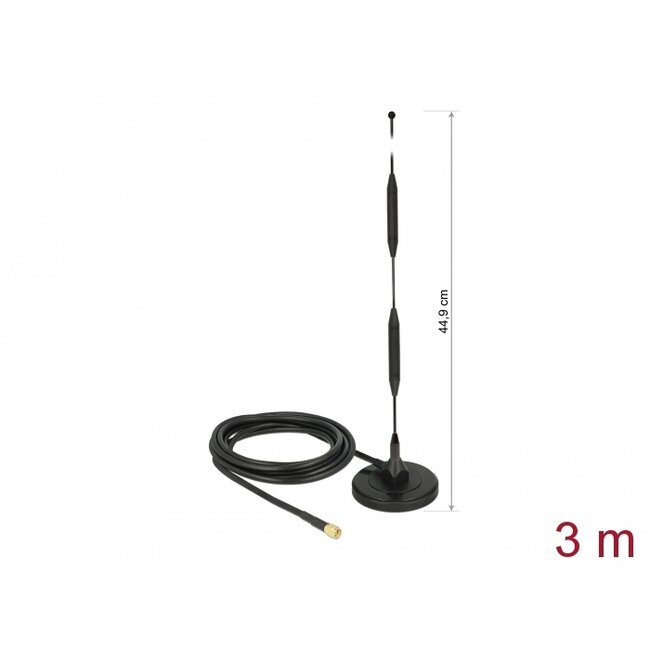

This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Specification• Connector: 1 x SMA plug
• Frequency range:
700 - 960 MHz
1710 - 2700 MHz
• GSM, LTE, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MH/z /
915 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Transmission power: 50 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable attenuation: 0.6 dB @ 1 GHz per meter
• Cable diameter: ca. 4.95 mm
• Cable length incl. connector: ca. 3 m
• Antenna length including magnetic base: ca. 44.9 cm
• Diameter magnetic base: ca. 86.0 mm
• Device with a free SMA jack
Package content
• LTE antenna
