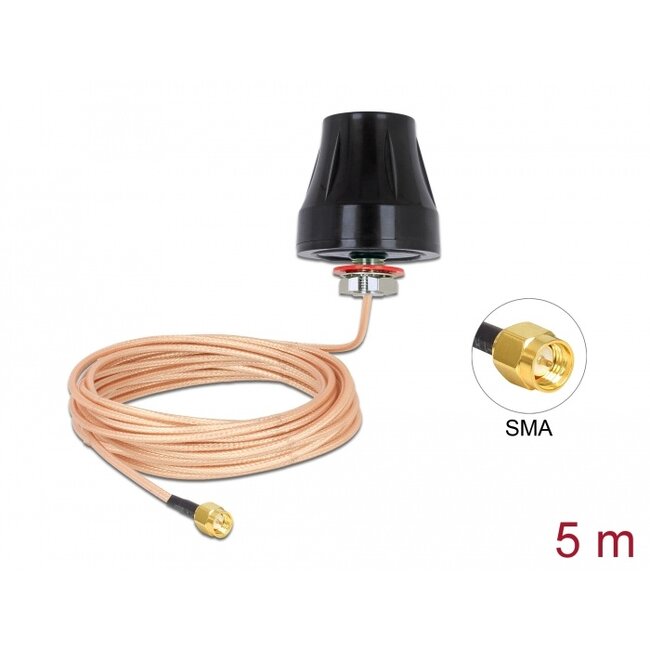

This LTE antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.

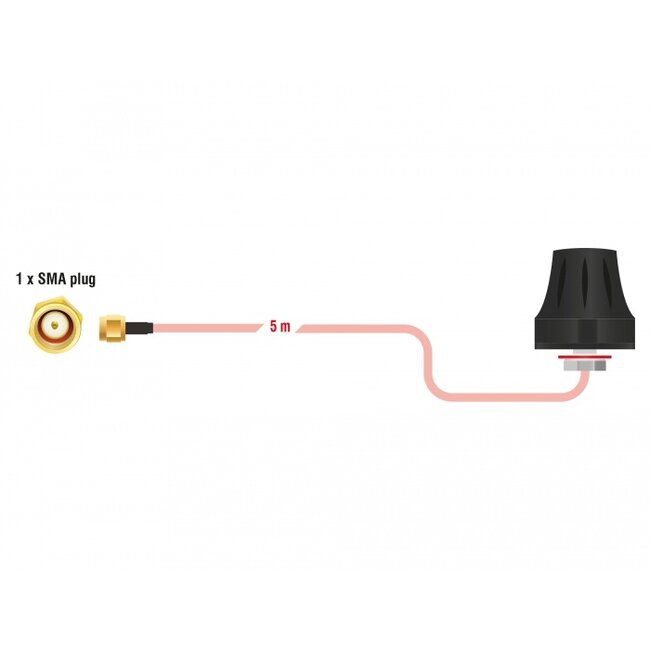

Specification• Connector: 1 x SMA plug
• Frequency range:
694 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915
MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0 - 3.0
• Polarisation: linear, vertical
• Screw mounting with 12 mm bore hole
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-316U
• Cable colour: transparent
• Cable attenuation: 0.95 dB @ 1 GHz per meter
• Cable diameter: ca. 2.5 mm
• Cable length: ca. 5 m
• Dimensions (LxD): ca. 48 x 50 mm
• Device with a free SMA jack
Package content
• Antenna
• Nut, washer
