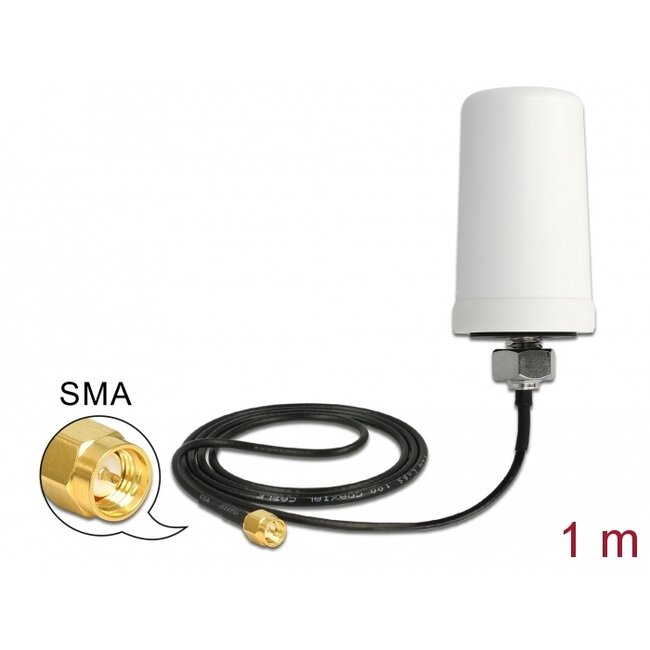

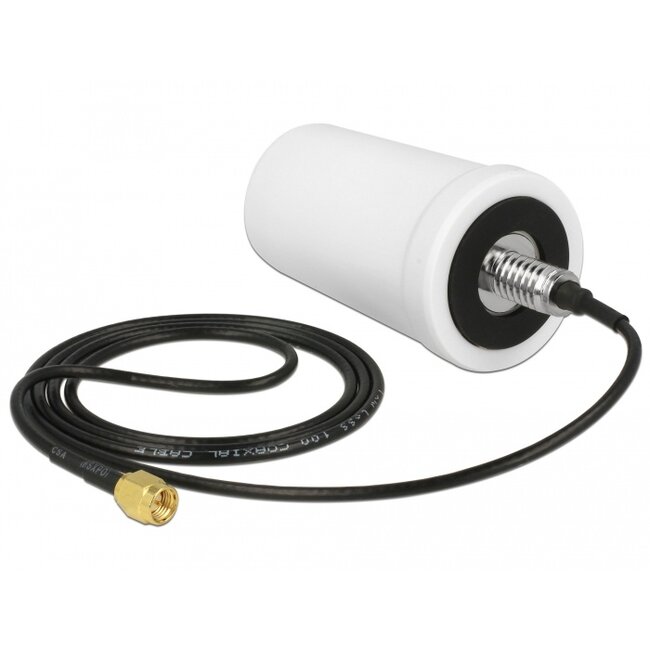

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .
Specification• Connector: 1 x SMA plug
• Frequency range:
698 - 960 MHz
1710 - 2170 MHz
2300 - 2700 MHz
• GSM, UMTS, LTE, Bluetooth, ISM, NB-IoT, LoRa, Z-Wave, WLAN, ZigBee, DECT,
TETRA
• Antenna gain:
698 - 960 MHz: 1.7 dBi
1710 - 2170 MHz: 1.7 dBi
2300 - 2700 MHz: 2.0 dBi
• VSWR:
698 - 960 MHz: 6.0
1710 - 2170 MHz: 2.5
2300 - 2700 MHz: 2.5
• Operating temperature: -40 °C ~ 85 °C
• Housing material: polycarbonate
• Protection class: IP67
• Colour: white
• Cable: coaxial
• Cable type: ULA100
• Cable colour: black
• Cable diameter: ca. 2.8 mm
• Cable attenuation: 0.98 dB @ 1500 MHz per meter
• Smallest bending radius: 14 mm
• Cable length incl. connectors: ca. 1 m
• Dimensions (LxD): ca. 77 x 45 mm
• Device with a free SMA jack
Package content
• Antenna
