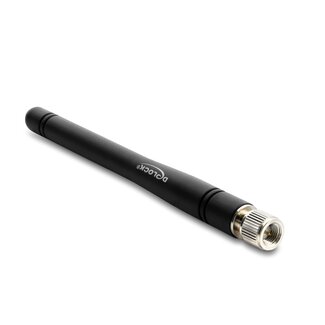

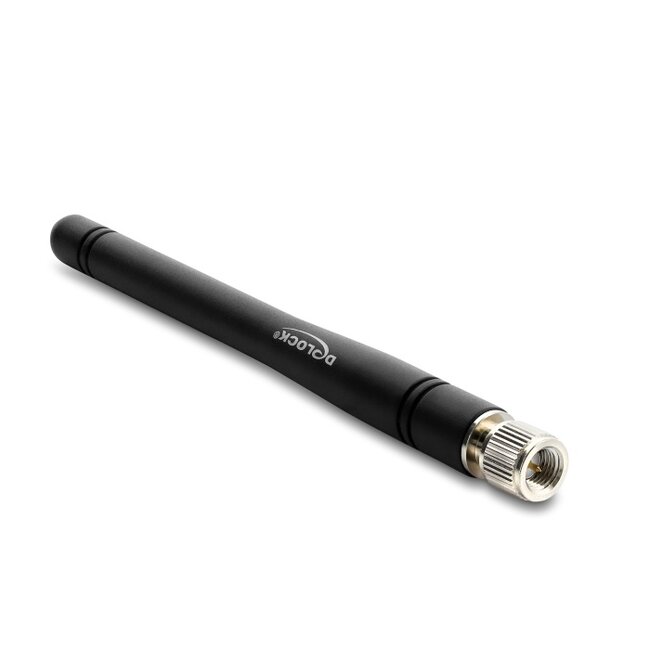

This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, LTE, UMTS, WLAN, ZigBee 928 MHz, Z-Wave, DECT, NB-IoT and LoRa 915 MHz.
Specification• Connector: 1 x SMA plug
• GSM, LTE, UMTS, WLAN, ZigBee 928 MHz, Z-Wave, DECT, NB-IoT, LoRa 915 MHz
• Frequency range:
700 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 1.0 - 5.23 dBi
• Impedance: 50 Ohm
• VSWR: 2.5 (824 - 2700 MHz)
• Polarisation: linear
• Operating temperature: -40 °C ~ 70 °C
• Housing material: TPEE
• Colour: black
• Antenna length: ca. 11.5 cm
• Diameter: ca. 1.0 cm
• Device with a free SMA jack
Package content
• Antenna
