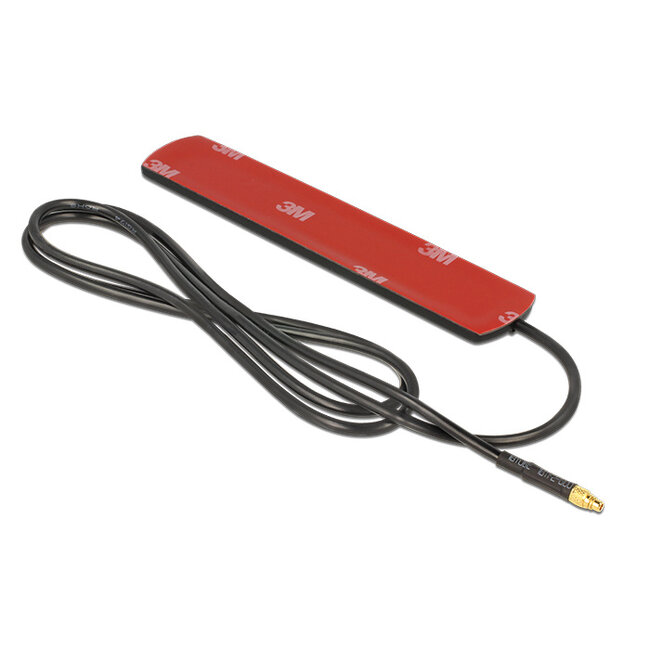

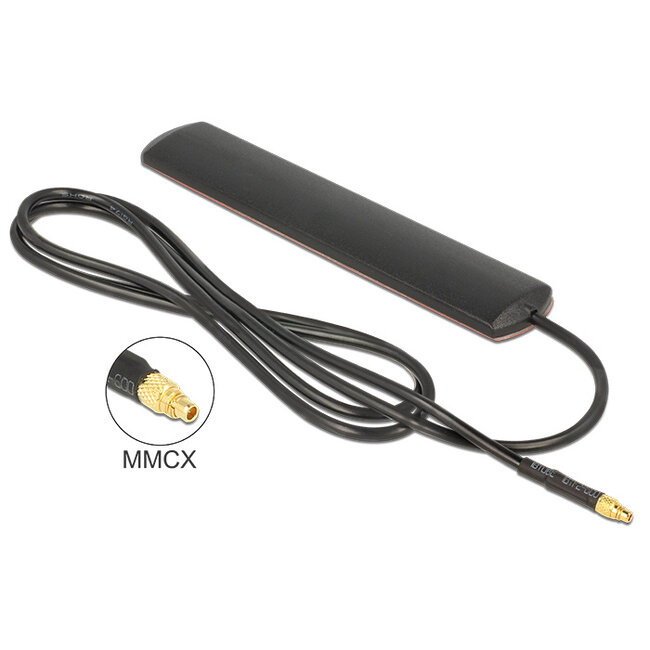

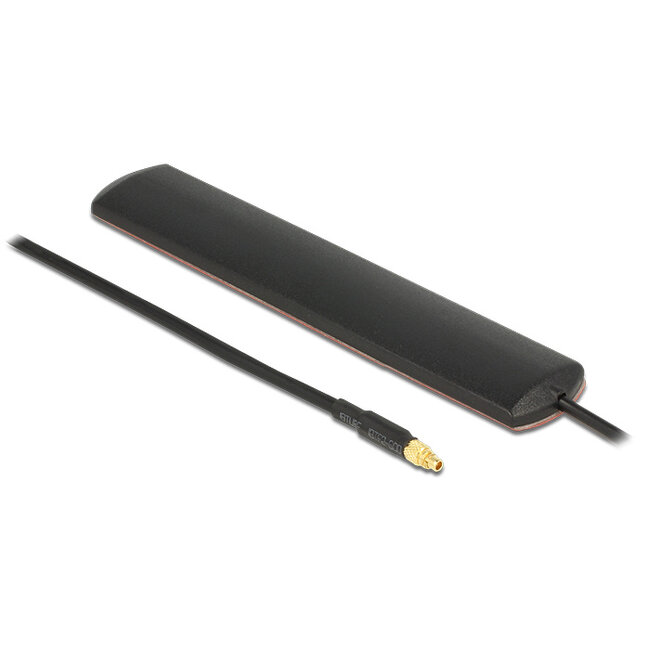

This Delock LTE antenna allows the use of different LTE bands indoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible.
Specification• Connector: MMCX plug
• LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44
• Frequency range: 690 - 960, 1710 - 2700 Mhz
• GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0.
• Operating temperature: -10 °C ~ 55 °C
• Housing: ABS UV resistant
• Colour: black
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,5 dB @ 1,5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 0,9 m
• Device with free MMCX connector
Package content
• LTE antenna
