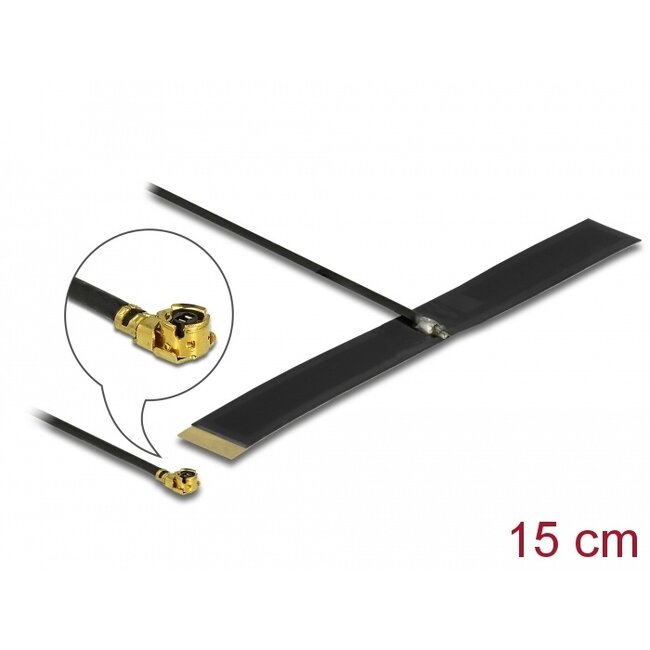

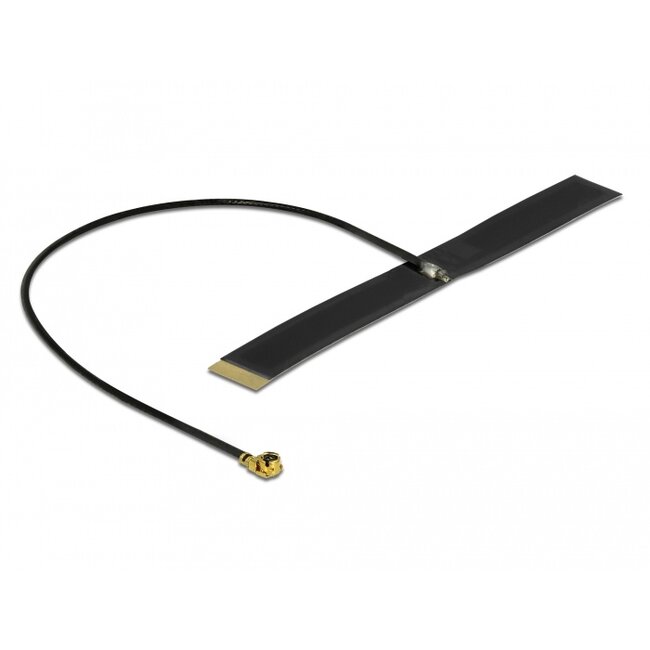

This LPWAN antenna by Delock allows the usage of the 863 - 928 MHz band indoors. It is completely compatible to GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM and LoRa.
LPWAN
LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption.
• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency range: 863 - 928 MHz
• GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM, LoRa
• Antenna gain: - 0.38 dBi
• VSWR: 3.0
• Impedance: 50 Ohm
• Mounting type: self-adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxW): ca. 79,0 x 10,0 mm
• Cable length incl. connector: ca. 15 cm
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
