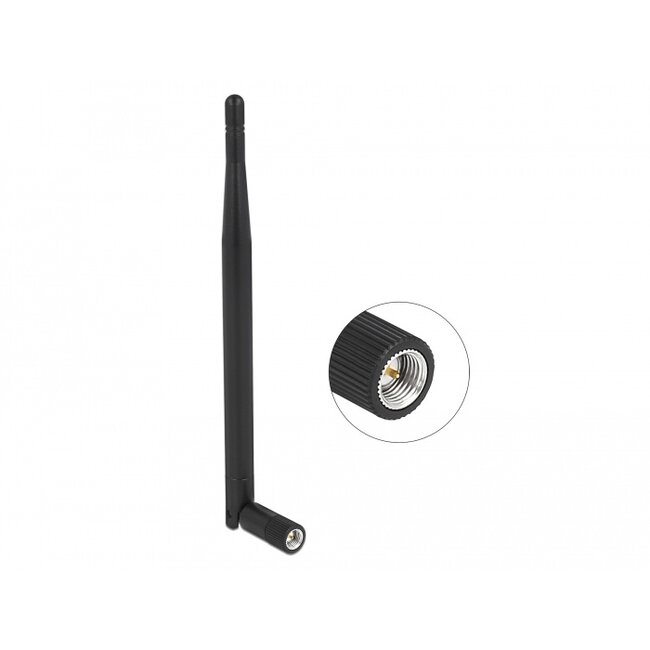

This antenna by Delock allows the usage of the 863 MHz - 928 MHz bands indoors.
LPWAN
LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption.
• Connector: 1 x SMA plug
• Frequency range: 863 MHz - 928 MHz
• ZigBee, LoRa, Z-Wave (908 MHz, 921 MHz), NB-IoT, ISM, GSM
• Antenna gain: 1.64 dBi
• Impedance: 50 Ohm
• VSWR: 3.5
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxD): ca. 17.0 x 1.0 cm
• Device with a free SMA connector
Package content
• Antenna
