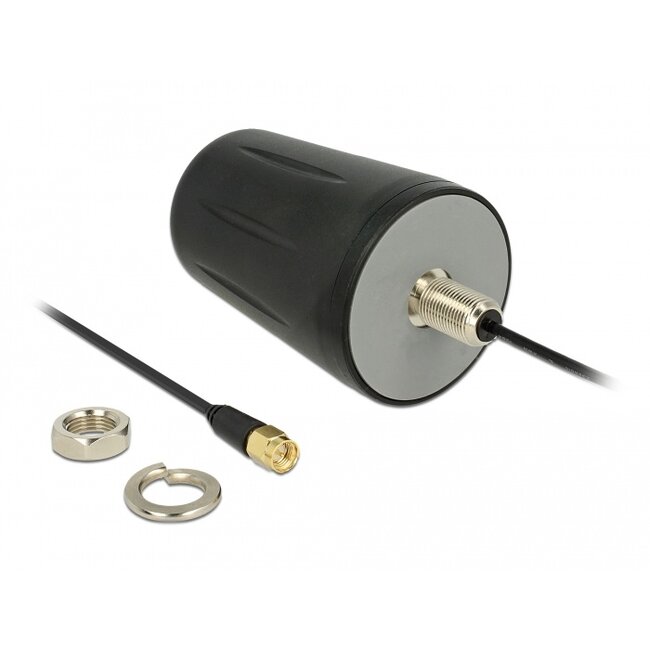

This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors. It is completely compatible to ZigBee 868 MHz and Z-Wave 868 MHz.
Specification• Connector: 1 x SMA plug
• Frequency range: 868 MHz
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing material: ABS UV resistant
• Screw mounting with 13.5 mm bore hole
• Thread length: 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.0 dB @ 868 MHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm
• Device with a free SMA jack
Package content
• Antenna
