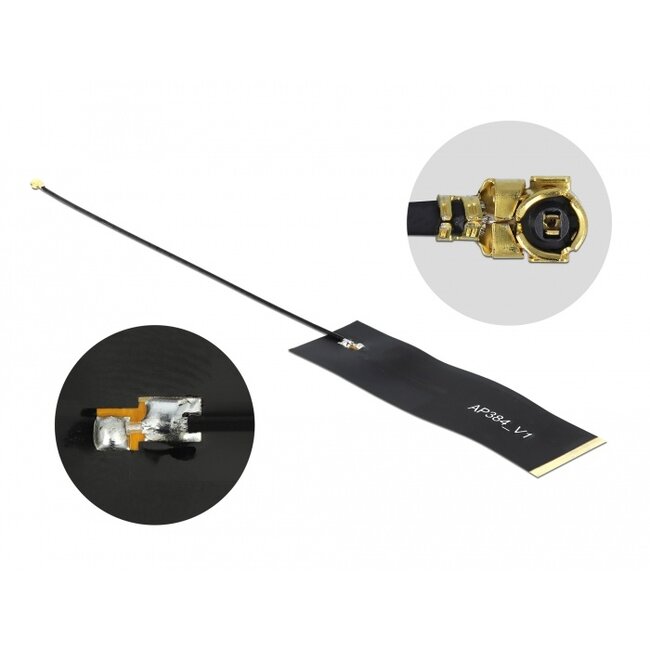

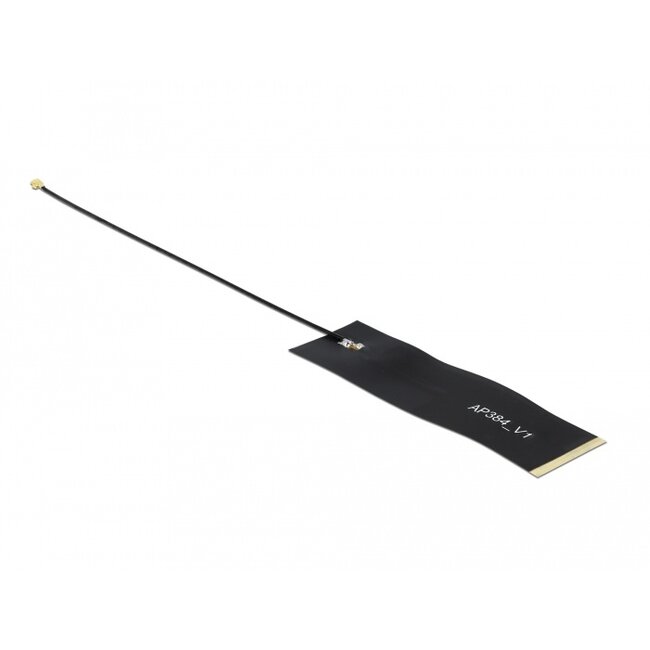

This antenna by Delock allows the usage of the 863 - 928 MHz bands indoors.
Specification• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency range: 863 - 928 MHz
• LoRa, NB-IoT, ZigBee, Z-Wave (908, 921), ISM, GSM
• Antenna gain: 1.68 dBi
• Impedance: 50 Ohm
• VSWR: 2.5
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 2.5 dB @ 2400 MHz per meter
• Smallest bending radius: 4.5 mm
• Length incl. connectors (L): ca. 15 cm
• Dimensions (LxW): ca. 85 x 20 mm
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
