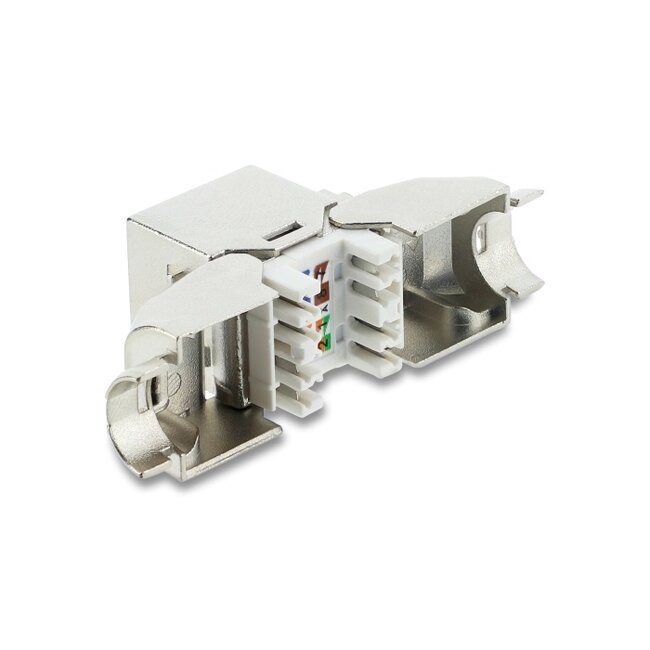

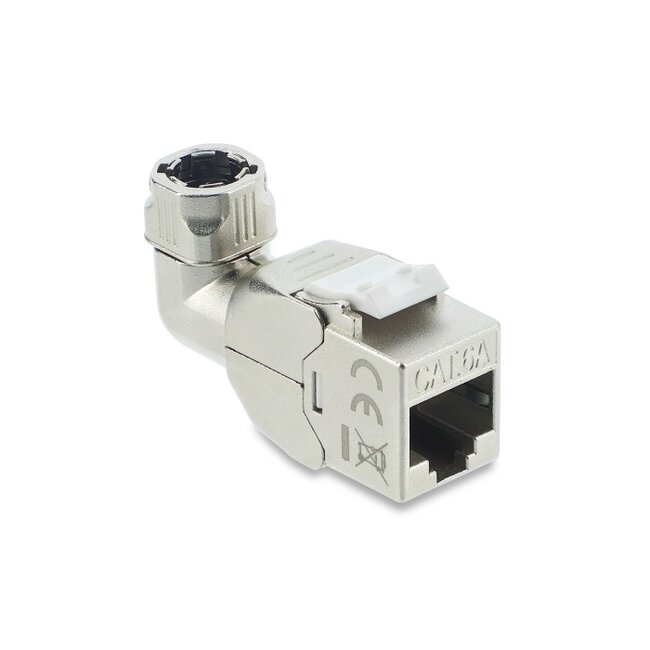

This module by Delock can be used to connect a network cable and is suitable for easy snap-in mounting in various holders, such as keystone patch panels, face plates or surface-mount boxes.
Flexible 90° connection
The module has an angled cable guide that can be adjusted at a 90° angle depending on the installation situation. This is particularly practical when there is little space available, for example in narrow junction boxes or distribution panels. This allows cables to be laid neatly and without sharp bends.
• Connectors:
1 x RJ45 jack
1 x LSA (toolfree)
• Cat.6A specification
• 90° angled cable routing
• Shielded
• TIA-568A/B pinout
• For solid or stranded wire (24 - 22 AWG)
• For cable diameter from 6.0 - 8.5 mm
• For Keystone ports with 19.2 x 14.9 mm
• Material: zinc diecast
• Dimensions (LxWxH): ca. 38.5 x 16.1 x 19.6 mm

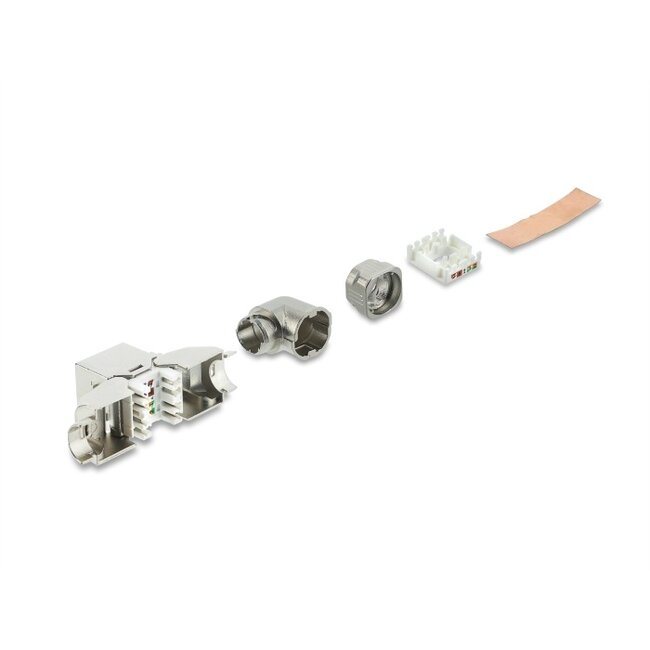

• Keystone module
• 90° angled cable routing
• Cable manager
• Cable gland
• Copper strip
