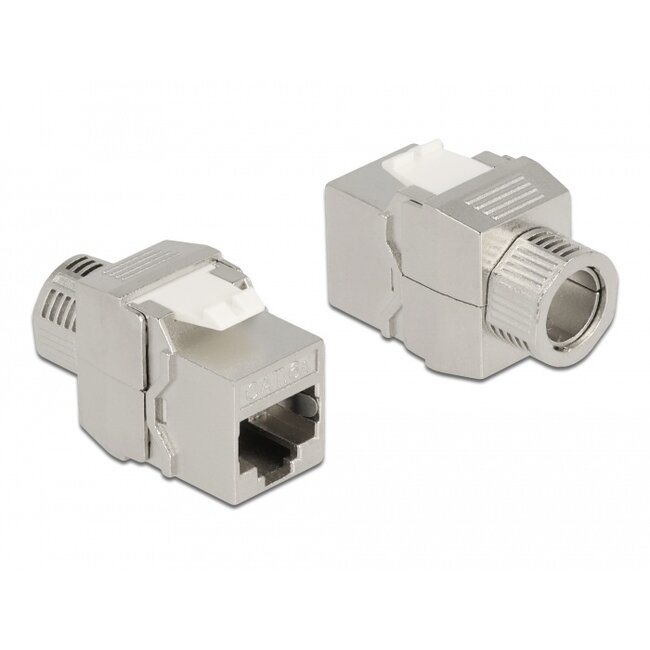

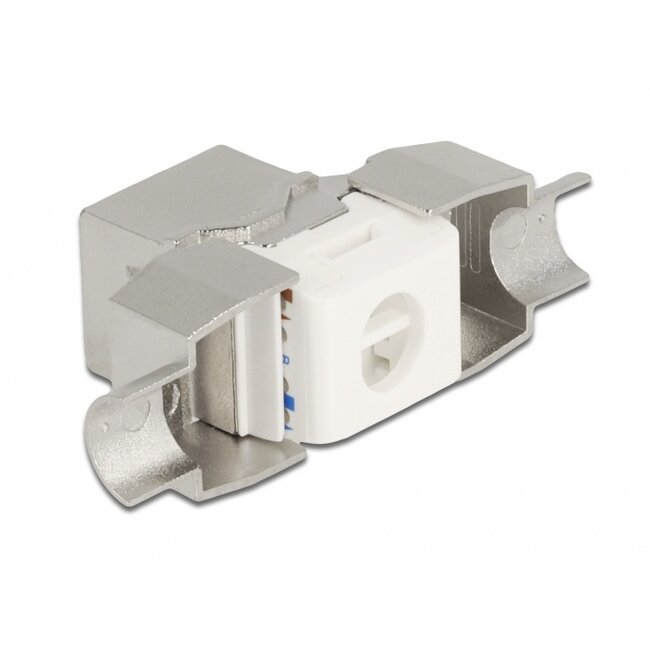

This module by Delock can be used to connect a network cable and is suitable for easy snap-in mounting in various holders, such as keystone patch panels, face plates or surface-mount boxes.
Specification• Connectors:
1 x RJ45 jack (8P/8C) >
1 x LSA (toolfree)
• Cat.6A specification
• Shielded (STP)
• TIA-568A/B pinout
• For solid or stranded wire (24 - 22 AWG)
• For cable diameter from 5.0 - 8.5 mm
• For Keystone ports with 19.2 x 14.9 mm
• Material: zinc die cast
• Dimensions (LxWxH): ca. 38.5 x 16.1 x 22.4 mm

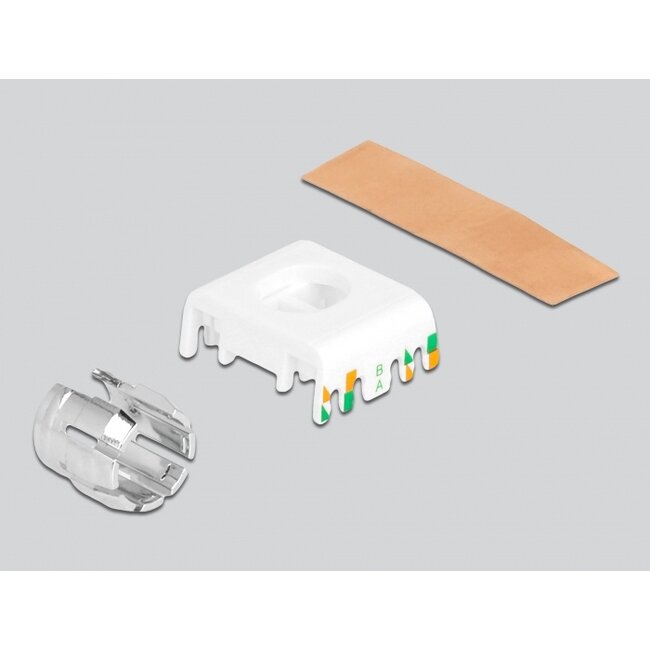

• Keystone module
• Cable manager
• Cable fixing
• Copper strip
• Lock nut
