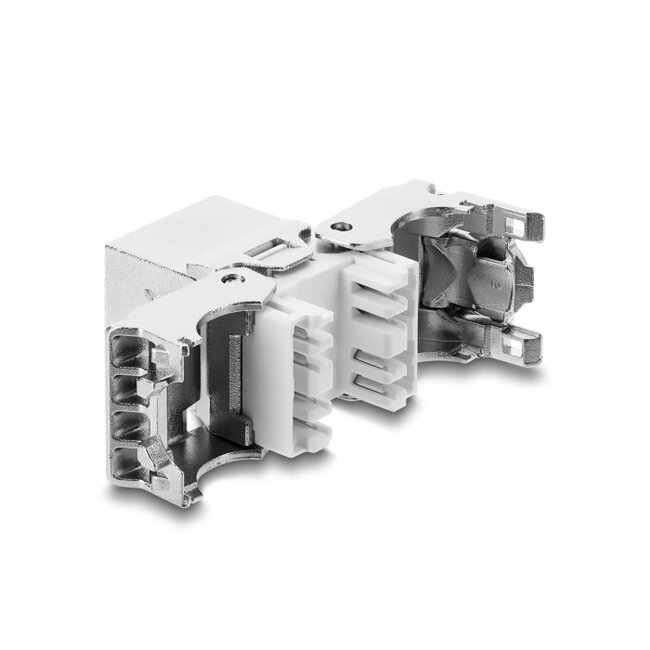

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
Horizontally angled cable entry
The module has an angled cable guide that can be adjusted at a 90° angle depending on the installation situation. This is particularly practical when there is little space available, for example in narrow junction boxes or distribution panels. This allows cables to be laid neatly and without sharp bends.
• Connectors:
1 x RJ45 jack (8P/8C)
1 x LSA (toolfree)
• Cat.6A specification
• Shielded (STP)
• Material: zinc diecast
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For cable diameter from 5.0 - 8.5 mm
• For Keystone ports with 19.2 x 14.9 mm
• Operating temperature: -10 °C ~ 60 °C
• Dimensions (LxWxH): ca. 31.9 x 16.8 x 23.0 mm
• Keystone module
• Cable manager
• Zip-tie
